Analog Devices Inc./Maxim Integrated

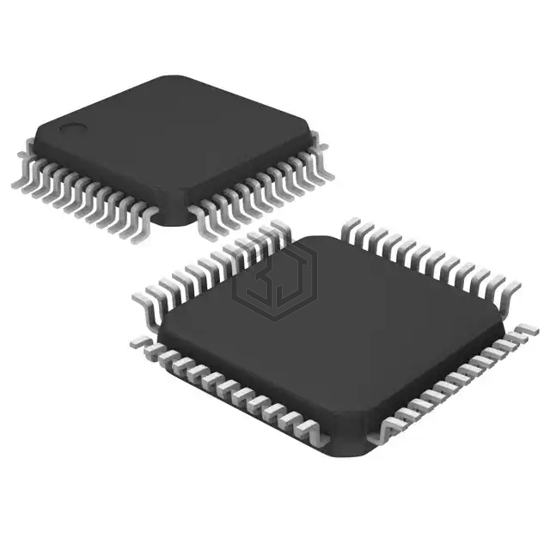

IC ADC 12BIT SAR 48LQFP
MAX1309ECM/V+ is a Data Acquisition - Analog to Digital Converters (ADC) manufactured by Analog Devices Inc./Maxim Integrated. IC ADC 12BIT SAR 48LQFP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply, digital 2.7V ~ 5.25V, package / case 48-LQFP.
In Stock: 1,497
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 680k |
| Number of Inputs | 4 |
| Input Type | Single Ended |
| Data Interface | Parallel |
| Configuration | MUX-S/H-ADC |
| Ratio - S/H:ADC | 4:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 2.7V ~ 5.25V |
| Features | Simultaneous Sampling |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 48-LQFP |
| Supplier Device Package | 48-LQFP (7x7) |
| Mounting Type | Surface Mount |
MAX1309ECM/V+ is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| AD7864BSZ-1REEL | Analog Devices Inc. | IC ADC 12BIT SAR 44MQFP | 92% | View |
| AD7366BRUZ-5 | Analog Devices Inc. | IC ADC 12BIT SAR 24TSSOP | 89% | View |
| ADS1119IRTET | Texas Instruments | IC ADC 16BIT SIGMA-DELTA 16WQFN | 85% | View |
| AD7863ARZ-2 | Analog Devices Inc. | IC ADC 14BIT SAR 28SOIC | 82% | View |
| LTC2324HUKG-12#PBF | Analog Devices Inc. | IC ADC 12BIT SAR 52QFN | 75% | View |
| ADC34J24IRGZT | Texas Instruments | IC ADC 12BIT 48VQFN | 64% | View |
Submit your RFQ for MAX1309ECM/V+ and get a quote within 24 hours.
