Analog Devices Inc./Maxim Integrated

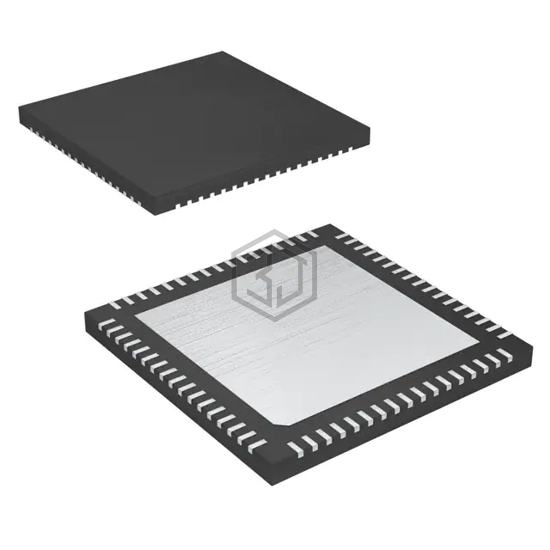

IC ADC 14BIT PIPELINED 68TQFN
MAX12558ETK+ is a Data Acquisition - Analog to Digital Converters (ADC) manufactured by Analog Devices Inc./Maxim Integrated. IC ADC 14BIT PIPELINED 68TQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply, digital 3.15V ~ 3.6V, package / case 68-WFQFN Exposed Pad.
In Stock: 3,792
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Number of Bits | 14 |
| Sampling Rate (Per Second) | 80M |
| Number of Inputs | 2 |
| Input Type | Differential, Single Ended |
| Data Interface | Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 2 |
| Architecture | Pipelined |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 3.15V ~ 3.6V |
| Voltage - Supply, Digital | 3.15V ~ 3.6V |
| Features | Simultaneous Sampling |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 68-WFQFN Exposed Pad |
| Supplier Device Package | 68-TQFN (10x10) |
| Mounting Type | Surface Mount |
MAX12558ETK+ is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ADC12DL080CIVS/NOPB | Texas Instruments | IC ADC 12BIT PIPELINED 64TQFP | 94% | View |
| ADC1413D080HN/C1,5 | NXP USA Inc. | IC ADC 14BIT PIPELINED 56HVQFN | 91% | View |
| LTC1407AIMSE#TRPBF | Analog Devices Inc. | IC ADC 14BIT PIPELINED 10MSOP | 88% | View |
| LTC2267IUJ-14#TRPBF | Analog Devices Inc. | IC ADC 14BIT PIPELINED 40QFN | 85% | View |
| AD9248BSTZ-65 | Analog Devices Inc. | IC ADC 14BIT PIPELINED 64LQFP | 85% | View |
| LTC2270IUP#TRPBF | Analog Devices Inc. | IC ADC 16BIT PIPELINED 64QFN | 83% | View |
Submit your RFQ for MAX12558ETK+ and get a quote within 24 hours.
