Analog Devices Inc./Maxim Integrated

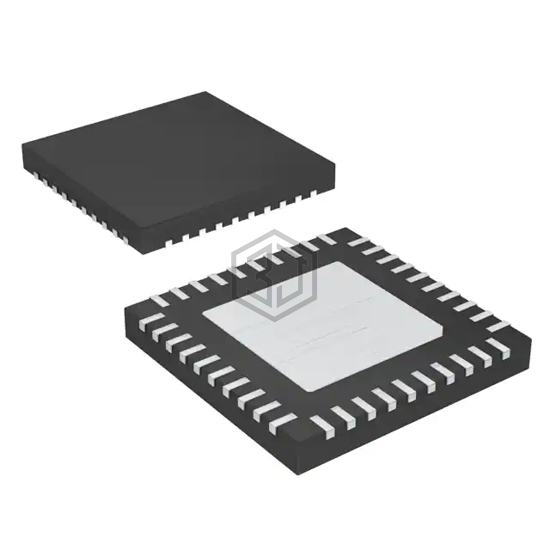

IC ADC 12BIT PIPELINED 40TQFN
MAX1209ETL+T is a Data Acquisition - Analog to Digital Converters (ADC) manufactured by Analog Devices Inc./Maxim Integrated. IC ADC 12BIT PIPELINED 40TQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply, digital 3V ~ 3.6V, package / case 40-WFQFN Exposed Pad.
In Stock: 3,328
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 80M |
| Number of Inputs | 1 |
| Input Type | Differential, Single Ended |
| Data Interface | Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | Pipelined |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 3V ~ 3.6V |
| Voltage - Supply, Digital | 3V ~ 3.6V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 40-WFQFN Exposed Pad |
| Supplier Device Package | 40-TQFN (5x5) |
| Mounting Type | Surface Mount |
MAX1209ETL+T is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| THS1230IDWR | Texas Instruments | IC ADC 12BIT PIPELINED 28SOIC | 100% | View |
| IDTADC1210S065HN-C1 | Renesas Electronics America Inc | IC ADC 12BIT PIPELINED 40VFQFPN | 99% | View |
| AD9203ARU | Analog Devices Inc. | IC ADC 10BIT PIPELINED 28TSSOP | 95% | View |
| LTC2248IUH | Linear Technology | IC ADC 14BIT PIPELINED 32QFN | 95% | View |
| IDTADC1212D065HN-C1 | Renesas Electronics America Inc | IC ADC 12BIT PIPELINED 64VFQFPN | 92% | View |
| ADC1206S055H/C1,55 | Renesas Electronics America Inc | IC ADC 12BIT 44PQFP | 87% | View |
Submit your RFQ for MAX1209ETL+T and get a quote within 24 hours.
