Analog Devices Inc./Maxim Integrated

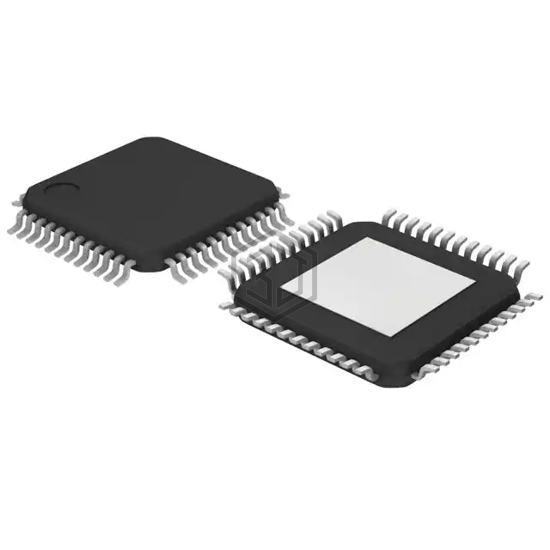

IC ADC 10BIT PIPELINED 48TQFP
MAX1184ECM+D is a Data Acquisition - Analog to Digital Converters (ADC) manufactured by Analog Devices Inc./Maxim Integrated. IC ADC 10BIT PIPELINED 48TQFP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply, digital 2.7V ~ 3.6V, package / case 48-TQFP Exposed Pad.
In Stock: 7,480
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Bits | 10 |
| Sampling Rate (Per Second) | 20M |
| Number of Inputs | 2 |
| Input Type | Differential, Single Ended |
| Data Interface | Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 2 |
| Architecture | Pipelined |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 2.7V ~ 3.6V |
| Voltage - Supply, Digital | 2.7V ~ 3.6V |
| Features | Simultaneous Sampling |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 48-TQFP Exposed Pad |
| Supplier Device Package | 48-TQFP-EP (7x7) |
| Mounting Type | Surface Mount |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LTC2281IUP#TRPBF | Analog Devices Inc. | IC ADC 10BIT PIPELINED 64QFN | 99% | View |
| LTC2321IUFD-12#PBF | Analog Devices Inc. | IC ADC 12BIT SAR 28QFN | 94% | View |
| LTC2321HUFD-12#PBF | Analog Devices Inc. | IC ADC 12BIT SAR 28QFN | 94% | View |
| LTC2321HUFD-12#TRPBF | Analog Devices Inc. | IC ADC 12BIT SAR 28QFN | 94% | View |
| AD7357WYRUZ | Analog Devices Inc. | IC ADC 14BIT SAR 16TSSOP | 91% | View |
| ADS62P29IRGCT | Texas Instruments | IC ADC 12BIT PIPELINED 64VQFN | 90% | View |
Submit your RFQ for MAX1184ECM+D and get a quote within 24 hours.
