Analog Devices Inc./Maxim Integrated

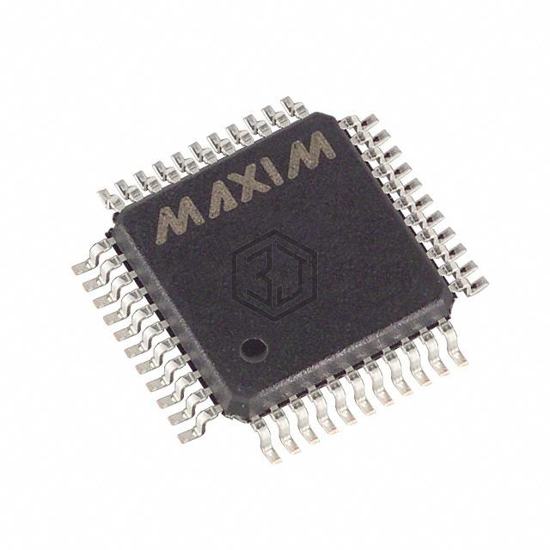

IC ADC 12BIT DUAL SLOPE 44MQFP
ICL7109CMH+D is a Data Acquisition - Analog to Digital Converters (ADC) manufactured by Analog Devices Inc./Maxim Integrated. IC ADC 12BIT DUAL SLOPE 44MQFP. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 70°C, voltage - supply, digital ±5V, package / case 44-QFP.
In Stock: 1,971
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 30 |
| Number of Inputs | 1 |
| Input Type | Differential |
| Data Interface | Parallel |
| Configuration | ADC |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 1 |
| Architecture | Dual Slope |
| Reference Type | External |
| Voltage - Supply, Analog | ±5V |
| Voltage - Supply, Digital | ±5V |
| Features | - |
| Operating Temperature | 0°C ~ 70°C |
| Package / Case | 44-QFP |
| Supplier Device Package | 44-MQFP (10x10) |
| Mounting Type | Surface Mount |
ICL7109CMH+D is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| TC7109CLW713 | Microchip Technology | IC ADC 12BIT DUAL SLOPE 44PLCC | 100% | View |
| MCP33121D-10-I/MN | Microchip Technology | IC ADC 14BIT SAR 10TDFN | 97% | View |
| AD7894AR-10REEL7 | Analog Devices Inc. | IC ADC 14BIT SAR 8SOIC | 97% | View |
| TLC1551IDWG4 | Texas Instruments | IC ADC 10BIT SAR 24SOIC | 96% | View |
| ADC0804S050TS/C1'1 | NXP USA Inc. | IC ADC 8BIT 28SSOP | 92% | View |
| MCP3550-50E/SNVAO | Microchip Technology | IC ADC 22BIT SIGMA-DELTA 8SOIC | 87% | View |
Submit your RFQ for ICL7109CMH+D and get a quote within 24 hours.
