Analog Devices Inc./Maxim Integrated

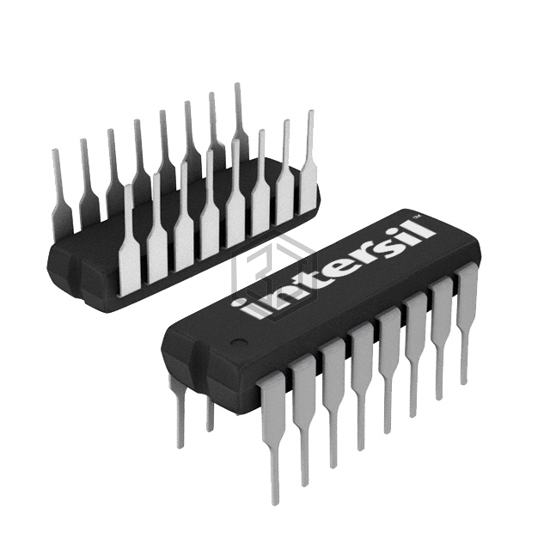

QUAD SPST CMOS ANALOG SWITCH
HI1-0201HS-2 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc./Maxim Integrated. QUAD SPST CMOS ANALOG SWITCH. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C (TA), package / case 16-CDIP (0.300", 7.62mm), number of circuits 4.
In Stock: 8,029
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SPST - NC |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 4 |
| On-State Resistance (Max) | 50Ohm |
| Channel-to-Channel Matching (ΔRon) | 1.5Ohm |
| Voltage - Supply, Single (V+) | - |
| Voltage - Supply, Dual (V±) | ±15V |
| Switch Time (Ton, Toff) (Max) | 50ns, 50ns |
| -3db Bandwidth | - |
| Charge Injection | 10pC |
| Channel Capacitance (CS(off), CD(off)) | 10pF, 10pF |
| Current - Leakage (IS(off)) (Max) | 10nA |
| Crosstalk | -86dB @ 100kHz |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Mounting Type | Through Hole |
| Package / Case | 16-CDIP (0.300", 7.62mm) |
| Supplier Device Package | 16-CERDIP |
HI1-0201HS-2 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| HI1-0201HS/883B | Analog Devices Inc./Maxim Integrated | IC SWITCH QUAD SPST 16CDIP | 75% | View |
| 7705302EA | Analog Devices Inc./Maxim Integrated | IC SWITCH SPST QUAD 16CDIP | 75% | View |
| DG271AK | Vishay Siliconix | IC SWITCH QUAD SPST/CMOS 16DIP | 67% | View |
| DG441LAK | Vishay Siliconix | IC SWITCH QUAD SPST 16DIP | 61% | View |
| DG442LAK | Vishay Siliconix | IC SWITCH QUAD SPST 16CDIP | 61% | View |
| CD74HC4316E | Texas Instruments | IC SWITCH QUAD 1X2 16DIP | 60% | View |
Submit your RFQ for HI1-0201HS-2 and get a quote within 24 hours.
