Analog Devices Inc./Maxim Integrated

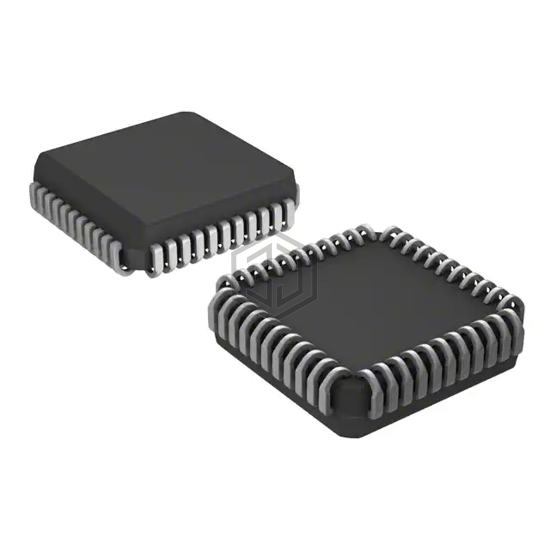

IC MCU 8BIT 16KB FLASH 44PLCC
DS89C420-QNG is a Embedded - Microcontrollers manufactured by Analog Devices Inc./Maxim Integrated. IC MCU 8BIT 16KB FLASH 44PLCC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) 4.5V ~ 5.5V, package / case 44-LCC (J-Lead).
In Stock: 1,121
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Core Processor | 8051 |
| Core Size | 8-Bit |
| Speed | 25MHz |
| Connectivity | EBI/EMI, SIO, UART/USART |
| Peripherals | Power-Fail Reset, WDT |
| Number of I/O | 32 |
| Program Memory Size | 16KB (16K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 1K x 8 |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 5.5V |
| Data Converters | - |
| Oscillator Type | External |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 44-LCC (J-Lead) |
| Supplier Device Package | 44-PLCC (16.59x16.59) |
DS89C420-QNG is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MC9S12C128MPBE | Freescale Semiconductor | IC MCU 16BIT 128KB FLASH 52TQFP | 90% | View |
| S9S12GA128ACLH | NXP USA Inc. | IC MCU 16BIT 128KB FLASH 64LQFP | 88% | View |
| C8051F855-C-GM | Silicon Labs | IC MCU 8BIT 2KB FLASH 20QFN | 80% | View |
| C8051F962-B-GQ | Silicon Labs | IC MCU 8BIT 128KB FLASH 80TQFP | 79% | View |
| MSP430F5529IPN | Texas Instruments | IC MCU 16BIT 128KB FLASH 80LQFP | 78% | View |
| EFM8BB10F8I-A-SOIC16 | Silicon Labs | IC MCU 8BIT 8KB FLASH 16SOIC | 78% | View |
Submit your RFQ for DS89C420-QNG and get a quote within 24 hours.
