Analog Devices Inc./Maxim Integrated
IC CPU PERIPHERAL MON 24-TSSOP

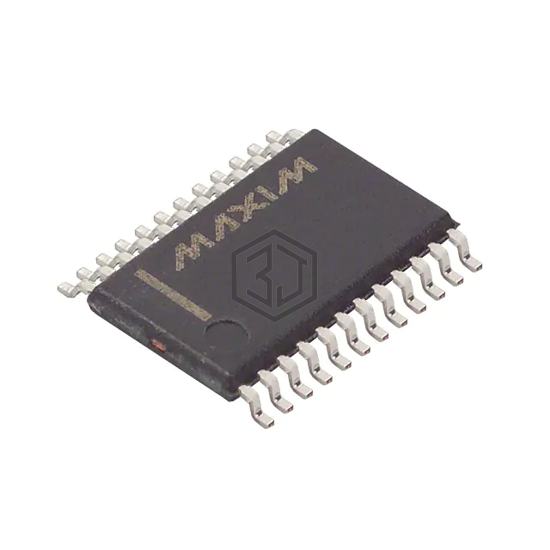

DS1780E is a PMIC - Thermal Management manufactured by Analog Devices Inc./Maxim Integrated. IC CPU PERIPHERAL MON 24-TSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 2.8V ~ 5.75V, package / case 24-TSSOP (0.173", 4.40mm Width).
In Stock: 3,271
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Function | Thermal Monitor, CPU Peripherals |
| Sensor Type | Internal |
| Sensing Temperature | -40°C ~ 125°C |
| Accuracy | ±12°C(Max) |
| Topology | ADC (Sigma Delta), Comparator, Fan Speed Control, Register Bank |
| Output Type | I²C/SMBus |
| Output Alarm | No |
| Output Fan | Yes |
| Voltage - Supply | 2.8V ~ 5.75V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 24-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 24-TSSOP |
DS1780E is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| DS1780E+T&R | Analog Devices Inc./Maxim Integrated | IC CPU PERIPHERAL MON 24-TSSOP | 100% | View |
| DS1780E+ | Analog Devices Inc./Maxim Integrated | IC CPU PERIPHERAL MON 24-TSSOP | 100% | View |
| DS1780E/T&R | Analog Devices Inc./Maxim Integrated | IC CPU PERIPHERAL MON 24-TSSOP | 100% | View |
Submit your RFQ for DS1780E and get a quote within 24 hours.
