Analog Devices Inc./Maxim Integrated

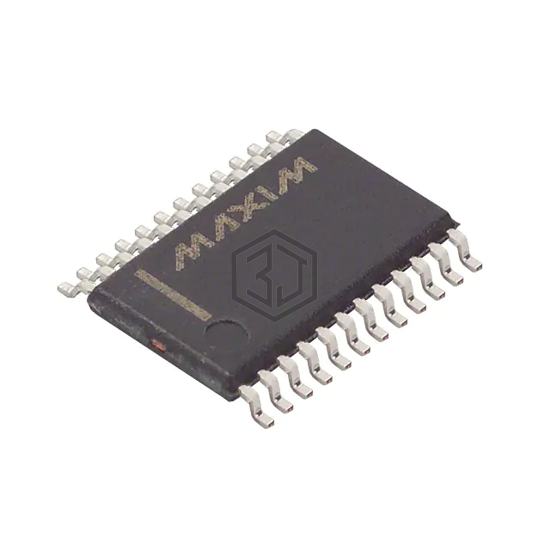

IC RTC CLK/CALENDAR PAR 24-TSSOP
DS1685E-3 is a Clock/Timing - Real Time Clocks manufactured by Analog Devices Inc./Maxim Integrated. IC RTC CLK/CALENDAR PAR 24-TSSOP. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 70°C, voltage - supply 2.7V ~ 3.7V, package / case 24-TSSOP (0.173", 4.40mm Width).
In Stock: 455
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Clock/Calendar |
| Features | Alarm, NVSRAM, Square Wave Output, Y2K |
| Memory Size | 242B |
| Time Format | HH:MM:SS (12/24 hr) |
| Date Format | YY-MM-DD-dd |
| Interface | Parallel |
| Voltage - Supply | 2.7V ~ 3.7V |
| Voltage - Supply, Battery | 2.5V ~ 3.7V |
| Current - Timekeeping (Max) | 2mA @ 3V |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Package / Case | 24-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 24-TSSOP |
DS1685E-3 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| DS1685E-3+T&R | Analog Devices Inc./Maxim Integrated | IC RTC CLK/CALENDAR PAR 24-TSSOP | 100% | View |
| DS17285SN-3+ | Analog Devices Inc./Maxim Integrated | IC RTC CLK/CALENDAR PAR 24-SOIC | 100% | View |
| DS1685EN-3+T&R | Analog Devices Inc./Maxim Integrated | IC RTC CLK/CALENDAR PAR 24-TSSOP | 100% | View |
| DS1685S-3+T&R | Analog Devices Inc./Maxim Integrated | IC RTC CLK/CALENDAR PAR 24-SOIC | 100% | View |
| DS1685QN-3+ | Analog Devices Inc./Maxim Integrated | IC RTC CLK/CALENDAR PAR 28-PLCC | 100% | View |
| DS1685S-3+ | Analog Devices Inc./Maxim Integrated | IC RTC CLK/CALENDAR PAR 24-SOIC | 100% | View |
Submit your RFQ for DS1685E-3 and get a quote within 24 hours.
