Analog Devices Inc./Maxim Integrated

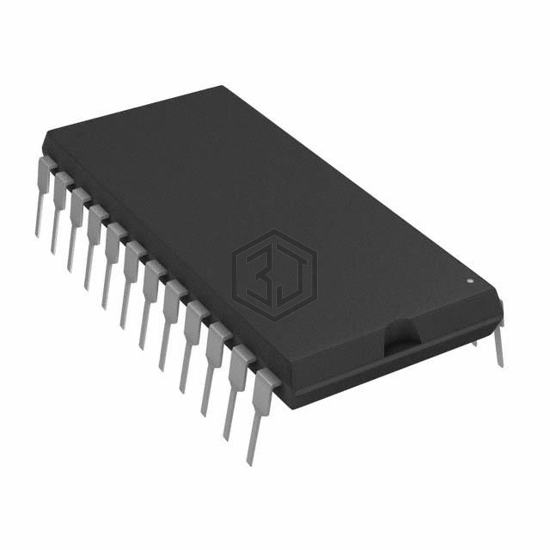

IC RTC 5V 64-BIT Y2KC 24-DIP
DS1685-5 is a Clock/Timing - Real Time Clocks manufactured by Analog Devices Inc./Maxim Integrated. IC RTC 5V 64-BIT Y2KC 24-DIP. Key specifications: mounting type Through Hole, operating temperature 0°C ~ 70°C, voltage - supply 4.5V ~ 5.5V, package / case 24-DIP (0.600", 15.24mm).
In Stock: 3,391
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Clock/Calendar |
| Features | Alarm, NVSRAM, Square Wave Output, Y2K |
| Memory Size | 242B |
| Time Format | HH:MM:SS (12/24 hr) |
| Date Format | YY-MM-DD-dd |
| Interface | Parallel |
| Voltage - Supply | 4.5V ~ 5.5V |
| Voltage - Supply, Battery | 2.5V ~ 3.7V |
| Current - Timekeeping (Max) | 3mA @ 5V |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Through Hole |
| Package / Case | 24-DIP (0.600", 15.24mm) |
| Supplier Device Package | 24-PDIP |
DS1685-5 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| DS17487-5+ | Analog Devices Inc./Maxim Integrated | IC RTC CLK/CALENDAR PAR 24-EDIP | 100% | View |
| DS1742-70 | Analog Devices Inc./Maxim Integrated | IC RTC CLK/CALENDAR PAR 24-EDIP | 100% | View |
| DS1742-100+ | Analog Devices Inc./Maxim Integrated | IC RTC CLK/CALENDAR PAR 24-EDIP | 100% | View |
| DS1687-5IND | Analog Devices Inc./Maxim Integrated | IC RTC CLK/CALENDAR PAR 24-EDIP | 100% | View |
| DS1553-100+ | Analog Devices Inc./Maxim Integrated | IC RTC CLK/CALENDAR PAR 28-EDIP | 100% | View |
| DS1643-100 | Analog Devices Inc./Maxim Integrated | IC RTC CLK/CALENDAR PAR 28-EDIP | 100% | View |
Submit your RFQ for DS1685-5 and get a quote within 24 hours.
