Analog Devices Inc./Maxim Integrated

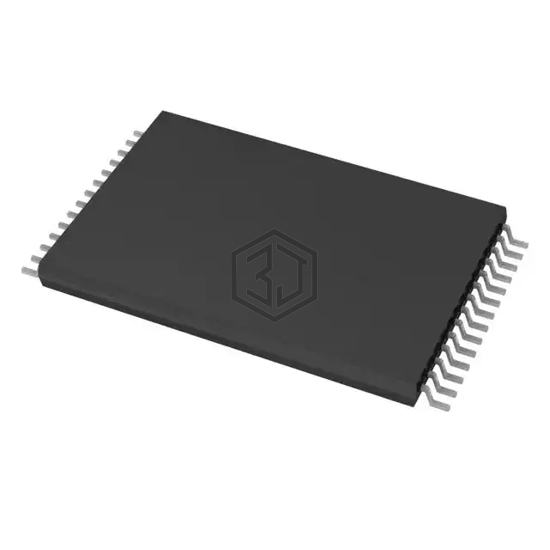

IC RTC CLK/CALENDAR PAR 28-TSOP
DS1501YEN+ is a Clock/Timing - Real Time Clocks manufactured by Analog Devices Inc./Maxim Integrated. IC RTC CLK/CALENDAR PAR 28-TSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply 4.5V ~ 5.5V, package / case 28-TSSOP (0.465", 11.80mm Width).
In Stock: 1,066
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Clock/Calendar |
| Features | Alarm, Leap Year, NVSRAM, Square Wave Output, Watchdog Timer, Y2K |
| Memory Size | 256B |
| Time Format | HH:MM:SS (24 hr) |
| Date Format | YY-MM-DD-dd |
| Interface | Parallel |
| Voltage - Supply | 4.5V ~ 5.5V |
| Voltage - Supply, Battery | 2.5V ~ 3.7V |
| Current - Timekeeping (Max) | 5mA @ 4.5V ~ 5.5V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 28-TSSOP (0.465", 11.80mm Width) |
| Supplier Device Package | 28-TSOP |
DS1501YEN+ is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| DS1501YZN+T&R | Analog Devices Inc./Maxim Integrated | IC RTC CLK/CALENDAR PAR 28-SOIC | 100% | View |
| DS1501YZN+ | Analog Devices Inc./Maxim Integrated | IC RTC CLK/CALENDAR PAR 28-SOIC | 100% | View |
| DS1501YEN | Analog Devices Inc./Maxim Integrated | IC RTC CLK/CALENDAR PAR 28-TSOP | 100% | View |
| DS1500YEN+ | Analog Devices Inc./Maxim Integrated | IC RTC CLK/CALENDAR PAR 32-TSOP | 100% | View |
| DS1501YSN+T&R | Analog Devices Inc./Maxim Integrated | IC RTC CLK/CALENDAR PAR 28-SOIC | 100% | View |
| DS1558Y+ | Analog Devices Inc./Maxim Integrated | IC RTC CLK/CALENDAR PAR 48-LQFP | 96% | View |
Submit your RFQ for DS1501YEN+ and get a quote within 24 hours.
