Analog Devices Inc./Maxim Integrated
IC RTC CLK/CALENDAR PAR 24-DIP

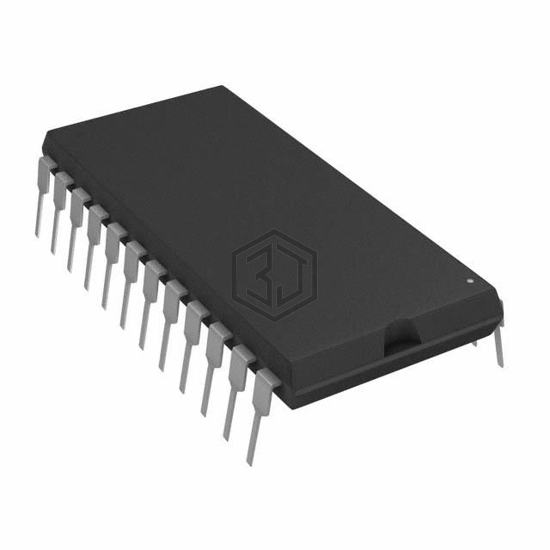

DS14285+ is a Clock/Timing - Real Time Clocks manufactured by Analog Devices Inc./Maxim Integrated. IC RTC CLK/CALENDAR PAR 24-DIP. Key specifications: mounting type Through Hole, operating temperature 0°C ~ 70°C, voltage - supply 4.5V ~ 5.5V, package / case 24-DIP (0.600", 15.24mm).
In Stock: 1,610
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Clock/Calendar |
| Features | Alarm, Daylight Savings, Leap Year, NVSRAM, Square Wave Output |
| Memory Size | 114B |
| Time Format | HH:MM:SS (12/24 hr) |
| Date Format | YY-MM-DD-dd |
| Interface | Parallel |
| Voltage - Supply | 4.5V ~ 5.5V |
| Voltage - Supply, Battery | 2.5V ~ 3.6V |
| Current - Timekeeping (Max) | 0.5µA @ 4.5V ~ 5.5V |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Through Hole |
| Package / Case | 24-DIP (0.600", 15.24mm) |
| Supplier Device Package | 24-PDIP |
DS14285+ is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| DS14285N | Analog Devices Inc./Maxim Integrated | IC RTC CLK/CALENDAR PAR 24-DIP | 100% | View |
| DS14287+ | Analog Devices Inc./Maxim Integrated | IC RTC CLK/CALENDAR PAR 24-EDIP | 100% | View |
| DS14287 | Analog Devices Inc./Maxim Integrated | IC RTC CLK/CALENDAR PAR 24-EDIP | 100% | View |
| DS1302N+ | Analog Devices Inc./Maxim Integrated | IC RTC CLK/CALENDAR SER 8-DIP | 68% | View |
| DS1302+ | Analog Devices Inc./Maxim Integrated | IC RTC CLK/CALENDAR SER 8-DIP | 68% | View |
| DS1337+ | Analog Devices Inc./Maxim Integrated | IC RTC CLK/CALENDAR I2C 8-DIP | 66% | View |
Submit your RFQ for DS14285+ and get a quote within 24 hours.
