Analog Devices Inc./Maxim Integrated
IC MUX ANLG MONO CMOS PLCC

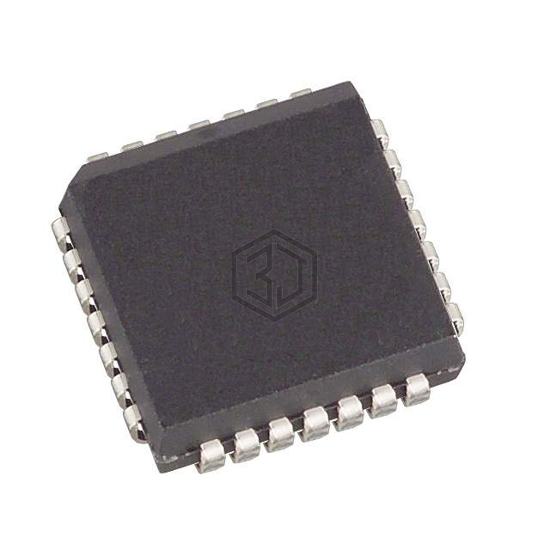

DG506ADN is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc./Maxim Integrated. IC MUX ANLG MONO CMOS PLCC. Key specifications: mounting type Surface Mount, package / case 28-LCC (J-Lead), number of circuits 1.
In Stock: 5,452
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | - |
| Multiplexer/Demultiplexer Circuit | 16:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 450Ohm |
| Channel-to-Channel Matching (ΔRon) | - |
| Voltage - Supply, Single (V+) | - |
| Voltage - Supply, Dual (V±) | ±4.5V ~ 18V |
| Switch Time (Ton, Toff) (Max) | 1µs, 400ns |
| -3db Bandwidth | - |
| Charge Injection | - |
| Channel Capacitance (CS(off), CD(off)) | 6pF, 45pF |
| Current - Leakage (IS(off)) (Max) | 5nA |
| Crosstalk | - |
| Operating Temperature | - |
| Mounting Type | Surface Mount |
| Package / Case | 28-LCC (J-Lead) |
| Supplier Device Package | 28-PLCC (11.51x11.51) |
DG506ADN is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| DG506ACWI+ | Analog Devices Inc./Maxim Integrated | IC MULTIPLEXER 16X1 28SOIC | 100% | View |
| DG506AEWI+T | Analog Devices Inc./Maxim Integrated | IC MULTIPLEXER 16X1 28SOIC | 100% | View |
| DG508ABY | Harris Corporation | CMOS ANALOG MULTIPLEXER | 97% | View |
| LTC1380IGN#PBF | Analog Devices Inc. | IC MULTIPLEXER 8X1 16SSOP | 83% | View |
| MAX333CWP+ | Analog Devices Inc./Maxim Integrated | IC SWITCH QUAD SPDT 20SOIC | 76% | View |
| DG212CSE+ | Analog Devices Inc./Maxim Integrated | IC SWITCH QUAD SPST 16SOIC | 76% | View |
