Analog Devices Inc./Maxim Integrated

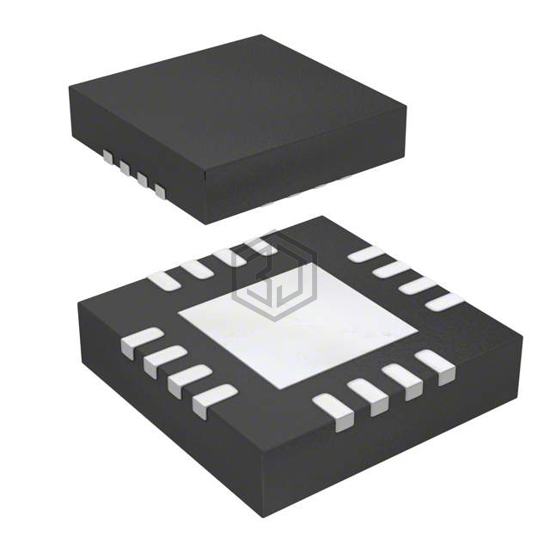

IC SWITCH QUAD SPST 16TQFN
DG442ETE+ is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc./Maxim Integrated. IC SWITCH QUAD SPST 16TQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 16-WQFN Exposed Pad, number of circuits 4.
In Stock: 8,051
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | SPST - NO |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 4 |
| On-State Resistance (Max) | 85Ohm |
| Channel-to-Channel Matching (ΔRon) | 4Ohm (Max) |
| Voltage - Supply, Single (V+) | 10V ~ 30V |
| Voltage - Supply, Dual (V±) | ±4.5V ~ 20V |
| Switch Time (Ton, Toff) (Max) | 250ns, 170ns |
| -3db Bandwidth | - |
| Charge Injection | 5pC |
| Channel Capacitance (CS(off), CD(off)) | 4pF, 4pF |
| Current - Leakage (IS(off)) (Max) | 500pA |
| Crosstalk | -100dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-WQFN Exposed Pad |
| Supplier Device Package | 16-TQFN (5x5) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| DG444DY+ | Analog Devices Inc./Maxim Integrated | IC SWITCH QUAD SPST 16SOIC | 100% | View |
| MAX362ESE+T | Analog Devices Inc./Maxim Integrated | IC SWITCH QUAD SPST 16SOIC | 100% | View |
| DG445DYZ | Renesas Electronics America Inc | IC SWITCH QUAD SPST 16SOIC | 91% | View |
| DG441DVZ | Renesas Electronics America Inc | IC SWITCH QUAD SPST 16TSSOP | 91% | View |
| MAX4623ESE+ | Analog Devices Inc./Maxim Integrated | IC SWITCH DUAL DPST 16SOIC | 61% | View |
| MAX4621ESE+ | Analog Devices Inc./Maxim Integrated | IC SWITCH DUAL SPST 16SOIC | 61% | View |
Submit your RFQ for DG442ETE+ and get a quote within 24 hours.
