Analog Devices Inc./Maxim Integrated

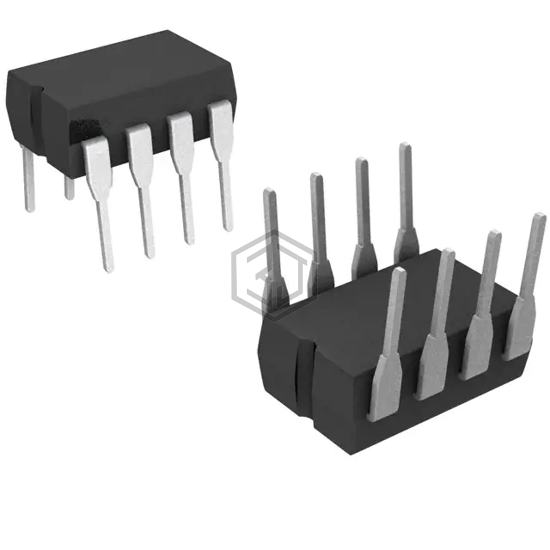

IC SWITCH SPST 35 OHM 8CDIP
DG418AK/883B is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc./Maxim Integrated. IC SWITCH SPST 35 OHM 8CDIP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C (TA), package / case 8-CDIP (0.300", 7.62mm), number of circuits 1.
In Stock: 7,471
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SPST - NO |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 35Ohm |
| Channel-to-Channel Matching (ΔRon) | 3Ohm (Max) |
| Voltage - Supply, Single (V+) | 10V ~ 30V |
| Voltage - Supply, Dual (V±) | ±4.5V ~ 20V |
| Switch Time (Ton, Toff) (Max) | 175ns, 145ns |
| -3db Bandwidth | - |
| Charge Injection | 3pC |
| Channel Capacitance (CS(off), CD(off)) | 8pF, 8pF |
| Current - Leakage (IS(off)) (Max) | 250pA |
| Crosstalk | -85dB @ 1MHz |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Mounting Type | Through Hole |
| Package / Case | 8-CDIP (0.300", 7.62mm) |
| Supplier Device Package | 8-CERDIP |
DG418AK/883B is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 5962-9073703MPA | Analog Devices Inc./Maxim Integrated | IC SWITCH SPDT 8CERDIP | 100% | View |
| DG412AK/883B | Analog Devices Inc./Maxim Integrated | IC SWITCH QUAD SPST 16CDIP | 81% | View |
| 5962-9073103MEA | Intersil | DUAL 4-BIT DRIVER | 81% | View |
| DG413AK | Analog Devices Inc./Maxim Integrated | IMPROVED, QUAD, SPST ANALOG SWIT | 81% | View |
| HI1-0516-8 | Harris Corporation | 16-CHANNEL ANALOG MULTIPLEXER | 54% | View |
| HI1-0518/883 | Harris Corporation | 8 CHANNEL/DIFFERENTIAL 4 CHANNEL | 51% | View |
Submit your RFQ for DG418AK/883B and get a quote within 24 hours.
