Analog Devices Inc./Maxim Integrated

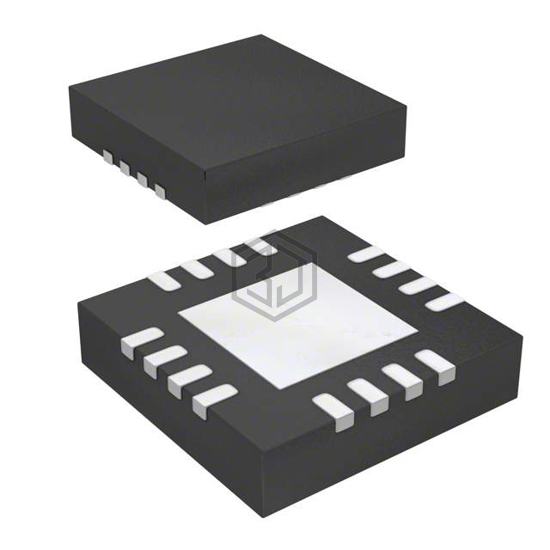

IC SWITCH QUAD SPST 16TQFN
DG413ETE+ is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc./Maxim Integrated. IC SWITCH QUAD SPST 16TQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 16-WQFN Exposed Pad, number of circuits 4.
In Stock: 5,505
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SPST - NO/NC |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 4 |
| On-State Resistance (Max) | 45Ohm |
| Channel-to-Channel Matching (ΔRon) | 3Ohm (Max) |
| Voltage - Supply, Single (V+) | 10V ~ 30V |
| Voltage - Supply, Dual (V±) | ±4.5V ~ 20V |
| Switch Time (Ton, Toff) (Max) | 175ns, 145ns |
| -3db Bandwidth | - |
| Charge Injection | 5pC |
| Channel Capacitance (CS(off), CD(off)) | 9pF, 9pF |
| Current - Leakage (IS(off)) (Max) | 250pA |
| Crosstalk | -85dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-WQFN Exposed Pad |
| Supplier Device Package | 16-TQFN (5x5) |
DG413ETE+ is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| DG413EUE+T | Analog Devices Inc./Maxim Integrated | IC SWITCH QUAD SPST 16TSSOP | 100% | View |
| MAX333AEWP+T | Analog Devices Inc./Maxim Integrated | IC SWITCH QUAD SPDT 20SOIC | 93% | View |
| DG411DY-E3 | Vishay Siliconix | IC SWITCH QUAD SPST 16-SOIC | 91% | View |
| MAX319ESA+ | Analog Devices Inc./Maxim Integrated | IC SWITCH SPDT 8SOIC | 81% | View |
| DG417DY+ | Analog Devices Inc./Maxim Integrated | IC SWITCH SPST 8SOIC | 81% | View |
| MAX318ESA+ | Analog Devices Inc./Maxim Integrated | IC SWITCH SPST 8SOIC | 81% | View |
Submit your RFQ for DG413ETE+ and get a quote within 24 hours.
