IC SW QUAD ANLG SPST 16-DIP

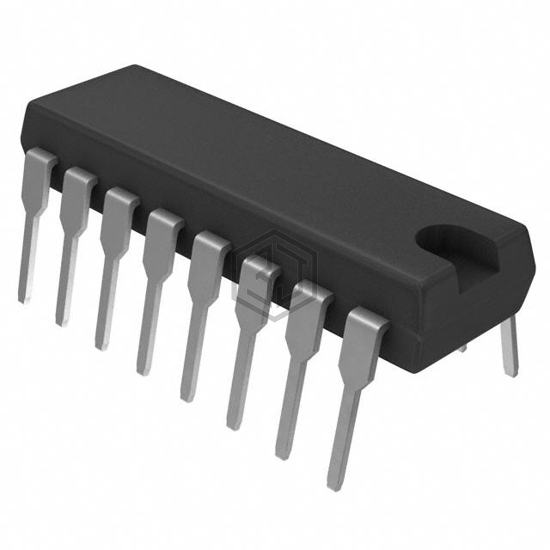

DG309DJ is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc./Maxim Integrated. IC SW QUAD ANLG SPST 16-DIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C (TA), package / case 16-DIP (0.300", 7.62mm), number of circuits 4.
In Stock: 1,332
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SPST - NC |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 4 |
| On-State Resistance (Max) | 100Ohm |
| Channel-to-Channel Matching (ΔRon) | - |
| Voltage - Supply, Single (V+) | 5V ~ 30V |
| Voltage - Supply, Dual (V±) | ±5V ~ 20V |
| Switch Time (Ton, Toff) (Max) | 250ns, 150ns |
| -3db Bandwidth | - |
| Charge Injection | -10pC |
| Channel Capacitance (CS(off), CD(off)) | 11pF, 8pF |
| Current - Leakage (IS(off)) (Max) | 5nA |
| Crosstalk | - |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Through Hole |
| Package / Case | 16-DIP (0.300", 7.62mm) |
| Supplier Device Package | 16-PDIP |
DG309DJ is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| DG309AK/883B | Analog Devices Inc./Maxim Integrated | IC SWITCH QUAD SPST 16CDIP | 80% | View |
| 5962-9073101MEA | Analog Devices Inc./Maxim Integrated | IC SWITCH SPST QUAD 16CDIP | 71% | View |
| MAX4533EPP | Analog Devices Inc./Maxim Integrated | IC SWITCH QUAD SPDT 20DIP | 66% | View |
| DG307AAK/883 | Vishay Siliconix | IC SWITCH CMOS 14DIP | 60% | View |
| MAX4603EPE+ | Analog Devices Inc./Maxim Integrated | IC SWITCH QUAD SPST 16DIP | 59% | View |
| 5962-9204102MEA | Analog Devices Inc./Maxim Integrated | IC SWITCH SPST QUAD 16CERDIP | 59% | View |
