Analog Devices Inc./Maxim Integrated
CMOS ANALOG SWITCH

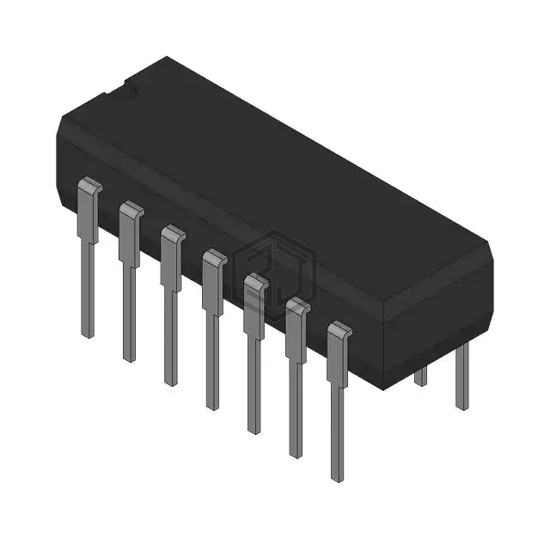

DG301ABK is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc./Maxim Integrated. CMOS ANALOG SWITCH. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C (TA), package / case 14-CDIP (0.300", 7.62mm), number of circuits 1.
In Stock: 86
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 50Ohm |
| Channel-to-Channel Matching (ΔRon) | - |
| Voltage - Supply, Single (V+) | - |
| Voltage - Supply, Dual (V±) | ±15V |
| Switch Time (Ton, Toff) (Max) | 300ns, 250ns |
| -3db Bandwidth | - |
| Charge Injection | 8pC |
| Channel Capacitance (CS(off), CD(off)) | 14pF, 14pF |
| Current - Leakage (IS(off)) (Max) | 1nA |
| Crosstalk | -74dB @ 500kHz |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Mounting Type | Through Hole |
| Package / Case | 14-CDIP (0.300", 7.62mm) |
| Supplier Device Package | 14-CERDIP |
DG301ABK is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| DG301AAK/883B | Analog Devices Inc./Maxim Integrated | IC SWITCH SPDT 50 OHM 14DIP | 100% | View |
| HI1-0301-2 | Harris Corporation | SPDT CMOS ANALOG SWITCH | 98% | View |
| DG390AAK/883B | Analog Devices Inc./Maxim Integrated | IC SWITCH SPDT DUAL 16CDIP | 89% | View |
| DG303AAK | Analog Devices Inc./Maxim Integrated | TTL COMPATIBLE CMOS ANALOG SWITC | 89% | View |
| DG303AAK/883B | Analog Devices Inc./Maxim Integrated | IC SWITCH 2 X SPDT 50 OHM 14DIP | 89% | View |
| ADG509ATQ/883B | Analog Devices Inc. | IC MULTIPLEXER DUAL 4X1 16CDIP | 73% | View |
