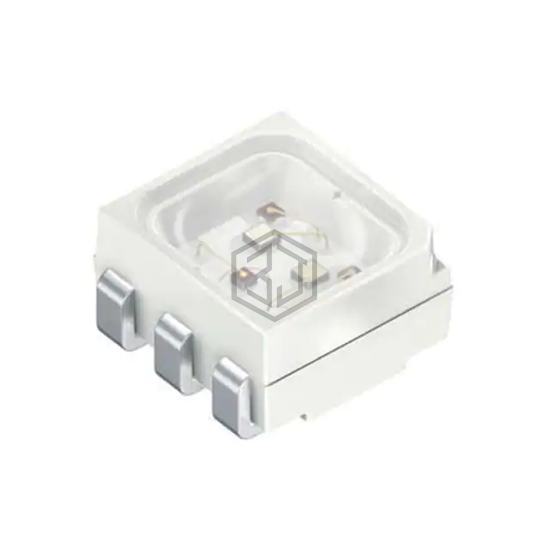

LED RGB 6PLCC SMD
LRTBGVSG-UEVE-24+AMAQ-29+SCUC-HR-20-L is a LED Indication - Discrete manufactured by ams. LED RGB 6PLCC SMD. Key specifications: mounting type Surface Mount, voltage - forward (vf) (typ) 2.05V Red, 3.2V Green, 3.2V Blue, package / case 6-SMD, J-Lead, color Red, Green, Blue (RGB).
In Stock: 25,554
| Attribute | Value |
|---|---|
| Product Status | Last Time Buy |
| Color | Red, Green, Blue (RGB) |
| Configuration | Independent |
| Lens Color | - |
| Lens Transparency | - |
| Millicandela Rating | 750mcd Red, 1630mcd Green, 370mcd Blue |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 2.90mm x 2.60mm |
| Voltage - Forward (Vf) (Typ) | 2.05V Red, 3.2V Green, 3.2V Blue |
| Current - Test | 20mA Red, 20mA Green, 20mA Blue |
| Viewing Angle | 120° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 625nm Red, 528nm Green, 460nm Blue |
| Wavelength - Peak | 632nm Red, 523nm Green, 455nm Blue |
| Features | - |
| Package / Case | 6-SMD, J-Lead |
| Supplier Device Package | 6-PLCC |
| Size / Dimension | 3.40mm L x 3.30mm W |
| Height (Max) | 2.00mm |
Submit your RFQ for LRTBGVSG-UEVE-24+AMAQ-29+SCUC-HR-20-L and get a quote within 24 hours.
