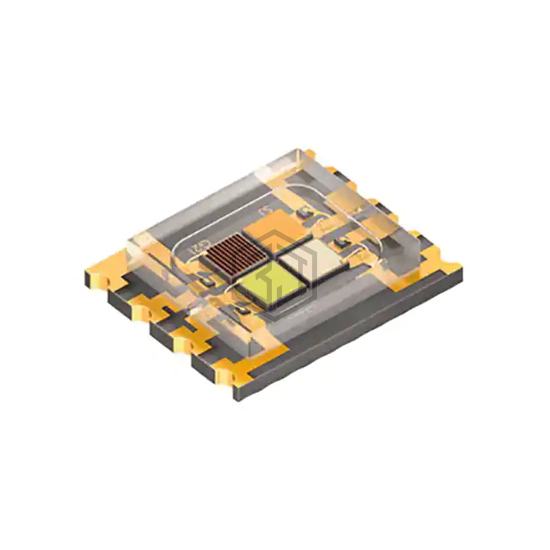

LED OSTAR RGBW 625/527/453NM SMD
LE RTDUW S2W is a LED Lighting - Color manufactured by ams. LED OSTAR RGBW 625/527/453NM SMD. Key specifications: mounting type Surface Mount, voltage - forward (vf) (typ) 2.5V Red, 3.6V Green, 3.45V Blue, 3.45V White, package / case 8-SMD Module, color Red, Green, Blue, White (RGBW).
In Stock: 252
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Color | Red, Green, Blue, White (RGBW) |
| Wavelength | 625nm Red, 527nm Green, 453nm Blue |
| Current - Test | 700mA Red, 700mA Green, 700mA Blue, 700mA White |
| Voltage - Forward (Vf) (Typ) | 2.5V Red, 3.6V Green, 3.45V Blue, 3.45V White |
| Lumens/Watt @ Current - Test | 45 lm/W Red, 54 lm/W Green, 75 lm/W White |
| Current - Max | 1A Red, 1A Green, 1A Blue, 1A White |
| Luminous Flux @ Current/Temperature | 79lm Red, 135lm Green, 765mW Blue, 182lm White |
| Temperature - Test | 25°C |
| Viewing Angle | 120° |
| Mounting Type | Surface Mount |
| Package / Case | 8-SMD Module |
| Supplier Device Package | SMD |
| Size / Dimension | 0.184" L x 0.228" W (4.68mm x 5.80mm) |
| Height - Seated (Max) | 0.048" (1.23mm) |
Submit your RFQ for LE RTDUW S2W and get a quote within 24 hours.
