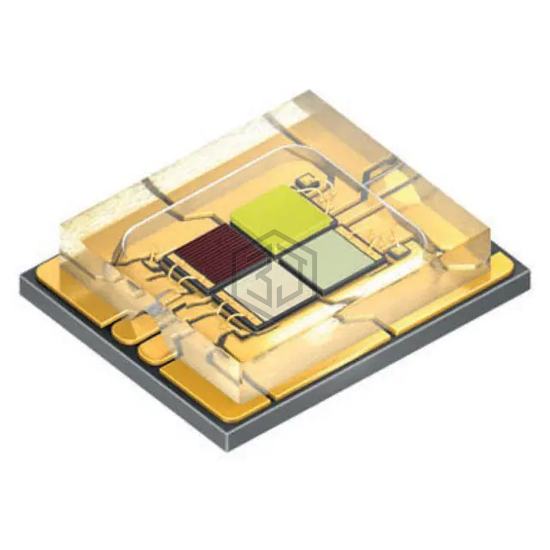

LED OSTAR RGBY 625/525/453NM SMD
LE RTDCY S2WN-KBLA-1+MANA-P+AXAZ-3+LBMB-YS is a LED Lighting - Color manufactured by ams. LED OSTAR RGBY 625/525/453NM SMD. Key specifications: mounting type Surface Mount, voltage - forward (vf) (typ) 2.35V Red, 3.6V Green, 3V Blue, 3V Yellow, package / case 8-SMD, No Lead Exposed Pad, color Red, Green, Blue, Yellow.
In Stock: 493
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Red, Green, Blue, Yellow |
| Wavelength | 625nm Red, 525nm Green, 453nm Blue |
| Current - Test | 1A Red, 1A Green, 1A Blue, 1A Yellow |
| Voltage - Forward (Vf) (Typ) | 2.35V Red, 3.6V Green, 3V Blue, 3V Yellow |
| Lumens/Watt @ Current - Test | 49 lm/W Red, 74 lm/W Green, 70 lm/W Yellow |
| Current - Max | 2.5A Red, 3A Green, 3A Blue, 3A Yellow |
| Luminous Flux @ Current/Temperature | 115lm Red, 268lm Green, 1460mW Blue, 210lm Yellow |
| Temperature - Test | 25°C |
| Viewing Angle | 120° Red, 120° Green, 120° Blue, 130° Yellow |
| Mounting Type | Surface Mount |
| Package / Case | 8-SMD, No Lead Exposed Pad |
| Supplier Device Package | SMD |
| Size / Dimension | 0.226" L x 0.184" W (5.75mm x 4.68mm) |
| Height - Seated (Max) | 0.054" (1.38mm) |
Submit your RFQ for LE RTDCY S2WN-KBLA-1+MANA-P+AXAZ-3+LBMB-YS and get a quote within 24 hours.
