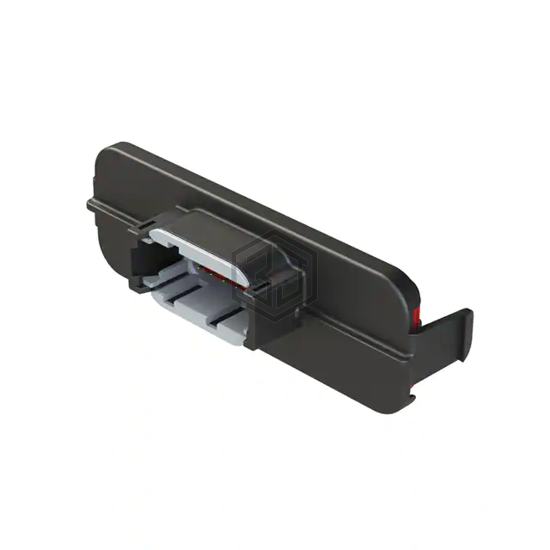

CONN HEADER R/A 12POS 4.2MM
ATM13-12PA-GR01 is a Rectangular Connectors - Headers, Male Pins manufactured by Amphenol Sine Systems Corp. CONN HEADER R/A 12POS 4.2MM. Key specifications: mounting type Panel Mount, Snap-In; Through Hole, Right Angle, operating temperature -55°C ~ 155°C, contact material Copper Alloy, current rating (amps) 7.5A.
In Stock: 90
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Receptacle |
| Contact Type | Male Pin |
| Pitch - Mating | 0.165" (4.20mm) |
| Number of Positions | 12 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.250" (6.35mm) |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Panel Mount, Snap-In; Through Hole, Right Angle |
| Termination | Solder |
| Fastening Type | Latch Holder |
| Contact Length - Mating | - |
| Contact Length - Post | 0.120" (3.05mm) |
| Overall Contact Length | - |
| Insulation Height | 1.378" (35.00mm) |
| Contact Shape | Circular |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Gold |
| Contact Material | Copper Alloy |
| Insulation Material | Thermoplastic |
| Features | Mounting Flange, Sealed |
| Operating Temperature | -55°C ~ 155°C |
| Ingress Protection | IP69K |
| Material Flammability Rating | - |
| Insulation Color | Black |
| Current Rating (Amps) | 7.5A |
| Voltage Rating | - |
Submit your RFQ for ATM13-12PA-GR01 and get a quote within 24 hours.
