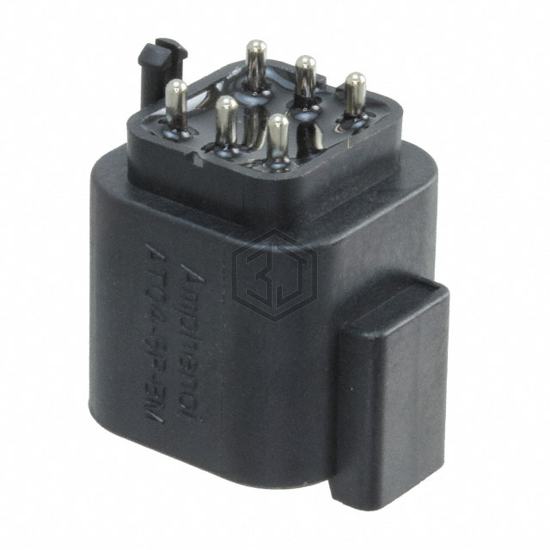

CONN HEADER VERT 6POS
AT04-6P-BM04 is a Rectangular Connectors - Headers, Male Pins manufactured by Amphenol Sine Systems Corp. CONN HEADER VERT 6POS. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, contact material Copper Alloy, current rating (amps) 13A.
In Stock: 1,233
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Receptacle |
| Contact Type | Male Pin |
| Pitch - Mating | - |
| Number of Positions | 6 |
| Number of Rows | 2 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Latch Holder |
| Contact Length - Mating | - |
| Contact Length - Post | - |
| Overall Contact Length | - |
| Insulation Height | 0.835" (21.21mm) |
| Contact Shape | Circular |
| Contact Finish - Mating | Nickel |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | - |
| Contact Material | Copper Alloy |
| Insulation Material | Thermoplastic |
| Features | Board Lock, Potting Wall |
| Operating Temperature | -55°C ~ 125°C |
| Ingress Protection | IP67 |
| Material Flammability Rating | - |
| Insulation Color | Black |
| Current Rating (Amps) | 13A |
| Voltage Rating | - |
