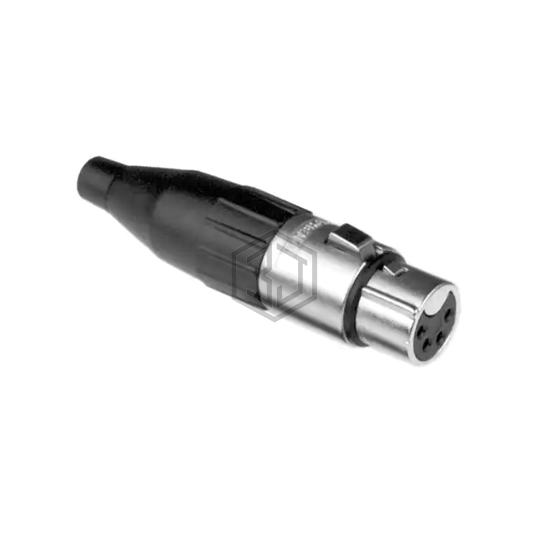

CONN PLUG FMALE XLR 4P SLDR CUP
AC4F is a Circular Connectors manufactured by Amphenol Audio. CONN PLUG FMALE XLR 4P SLDR CUP. Key specifications: mounting type Free Hanging (In-Line), operating temperature -25°C ~ 75°C, color Silver, current rating (amps) 10A.
In Stock: 391
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Plug, Female Sockets |
| Number of Positions | 4 |
| Shell Size - Insert | XLR |
| Shell Size, MIL | - |
| Mounting Type | Free Hanging (In-Line) |
| Mounting Feature | - |
| Termination | Solder Cup |
| Fastening Type | Latch Lock |
| Orientation | Keyed |
| Primary Material | Metal |
| Shell Material | Zinc Die Cast |
| Shell Finish | Nickel |
| Contact Finish - Mating | Tin |
| Color | Silver |
| Ingress Protection | IP40 |
| Material Flammability Rating | UL94 V-0 |
| Features | Backshell, Cable Clamp |
| Shielding | Unshielded |
| Current Rating (Amps) | 10A |
| Voltage Rating | - |
| Cable Opening | 0.118" ~ 0.256" (3.00mm ~ 6.50mm) |
| Operating Temperature | -25°C ~ 75°C |
Submit your RFQ for AC4F and get a quote within 24 hours.
