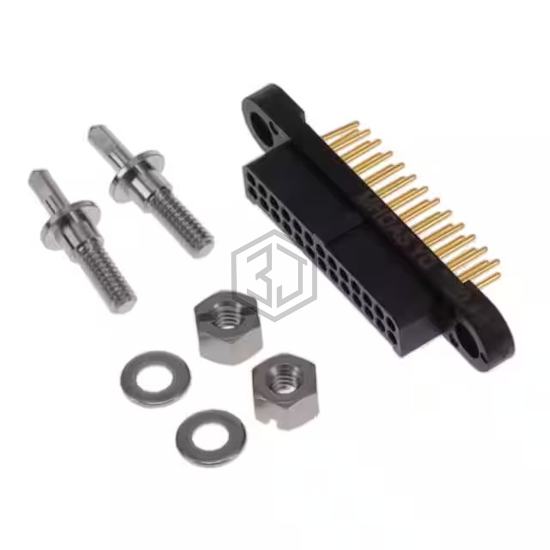

MICRO HDAS 26 MALE STRAIGHT PC T
MHDAS2M026YDE10 is a Rectangular Connectors - Headers, Male Pins manufactured by Amphenol Socapex. MICRO HDAS 26 MALE STRAIGHT PC T. Key specifications: mounting type Through Hole, contact material Copper Alloy, termination Solder, number of positions 26.
In Stock: 10
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.050" (1.27mm) |
| Number of Positions | 26 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.050" (1.27mm) |
| Number of Positions Loaded | All |
| Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Threaded |
| Contact Length - Mating | - |
| Contact Length - Post | 0.118" (3.00mm) |
| Overall Contact Length | - |
| Insulation Height | 0.207" (5.25mm) |
| Contact Shape | Circular |
| Contact Finish - Mating | - |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | - |
| Contact Material | Copper Alloy |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Features | Guide Pin, Mounting Flange, Polarizing Key |
| Operating Temperature | - |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | - |
| Voltage Rating | - |
Submit your RFQ for MHDAS2M026YDE10 and get a quote within 24 hours.
