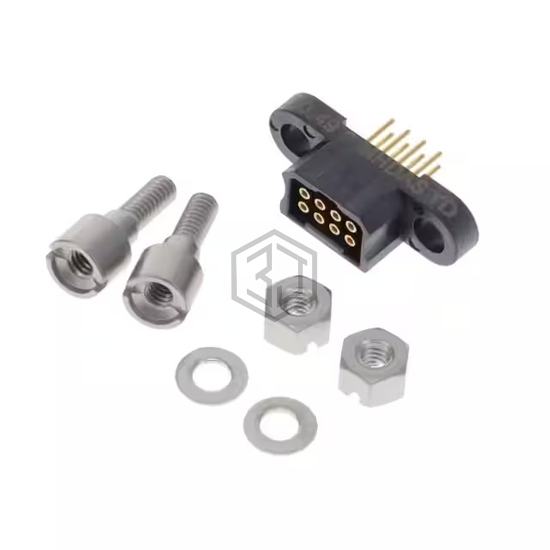

MICRO HDAS 8 FEMALE STRAIGHT PC
MHDAS2F008YDE50 is a Rectangular Connectors - Headers, Receptacles, Female Sockets manufactured by Amphenol Socapex. MICRO HDAS 8 FEMALE STRAIGHT PC. Key specifications: mounting type Through Hole, termination Solder, number of positions 8, connector type Receptacle.
In Stock: 10
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Receptacle |
| Contact Type | Female Socket |
| Style | Board to Board |
| Number of Positions | 8 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.050" (1.27mm) |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.050" (1.27mm) |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Threaded |
| Contact Finish - Mating | - |
| Contact Finish Thickness - Mating | - |
| Insulation Color | Black |
| Insulation Height | 0.213" (5.40mm) |
| Contact Length - Post | 0.118" (3.00mm) |
| Operating Temperature | - |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish - Post | - |
| Mated Stacking Heights | - |
| Ingress Protection | - |
| Features | Jackscrews, Mating Flange, Mounting Flange |
| Current Rating (Amps) | - |
| Voltage Rating | - |
Submit your RFQ for MHDAS2F008YDE50 and get a quote within 24 hours.
