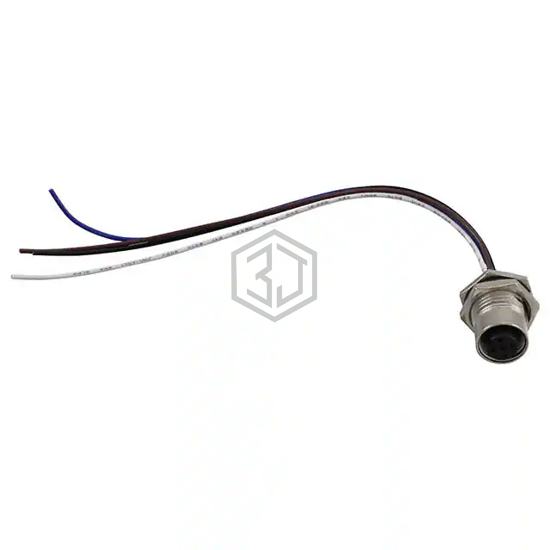

CONN RCPT FML 4P WIR LEAD 0.49'
M12A-04PFFC-SF8B15 is a Circular Connectors manufactured by Amphenol LTW. CONN RCPT FML 4P WIR LEAD 0.49'. Key specifications: mounting type Panel Mount, operating temperature -25°C ~ 85°C, voltage rating 250VAC/DC, color Silver.
In Stock: 230
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Receptacle, Female Sockets |
| Number of Positions | 4 |
| Shell Size - Insert | M12-4 |
| Shell Size, MIL | - |
| Mounting Type | Panel Mount |
| Mounting Feature | Bulkhead - Front Side Nut |
| Termination | Wire Leads |
| Fastening Type | Threaded |
| Orientation | A |
| Primary Material | Metal |
| Shell Material | Zinc Alloy |
| Shell Finish | Nickel |
| Contact Finish - Mating | Gold |
| Color | Silver |
| Ingress Protection | IP68/IP69K - Dust Tight, Water Resistant, Waterproof |
| Material Flammability Rating | - |
| Features | - |
| Shielding | Shielded |
| Current Rating (Amps) | 4A |
| Voltage Rating | 250VAC/DC |
| Cable Opening | - |
| Operating Temperature | -25°C ~ 85°C |
Submit your RFQ for M12A-04PFFC-SF8B15 and get a quote within 24 hours.
