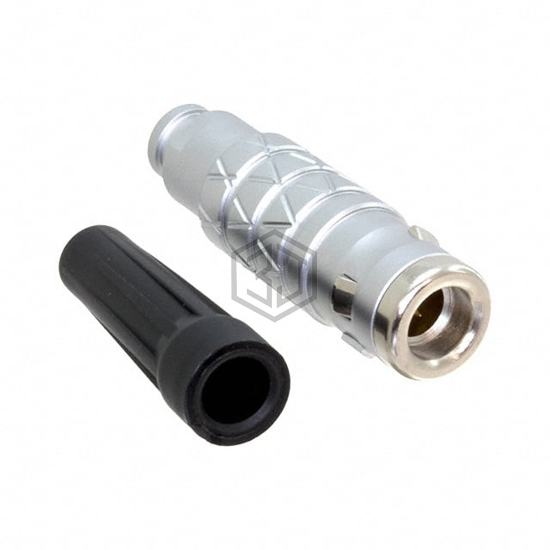

CONN PLUG MALE 2P GOLD SLDR CUP
FLKC-02FGMS-GCP-213 is a Circular Connectors manufactured by Amphenol LTW. CONN PLUG MALE 2P GOLD SLDR CUP. Key specifications: mounting type Free Hanging (In-Line), operating temperature -40°C ~ 125°C, voltage rating 500V, color Silver.
In Stock: 7
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Plug, Male Pins |
| Number of Positions | 2 |
| Shell Size - Insert | C-2 |
| Shell Size, MIL | - |
| Mounting Type | Free Hanging (In-Line) |
| Mounting Feature | - |
| Termination | Solder Cup |
| Fastening Type | Push-Pull |
| Orientation | G |
| Primary Material | Metal |
| Shell Material | Copper Alloy |
| Shell Finish | Chrome |
| Contact Finish - Mating | Gold |
| Color | Silver |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Material Flammability Rating | - |
| Features | Backshell, Cable Clamp |
| Shielding | Shielded |
| Current Rating (Amps) | 15A |
| Voltage Rating | 500V |
| Cable Opening | 0.228" ~ 0.240" (5.80mm ~ 6.10mm) |
| Operating Temperature | -40°C ~ 125°C |
Submit your RFQ for FLKC-02FGMS-GCP-213 and get a quote within 24 hours.
