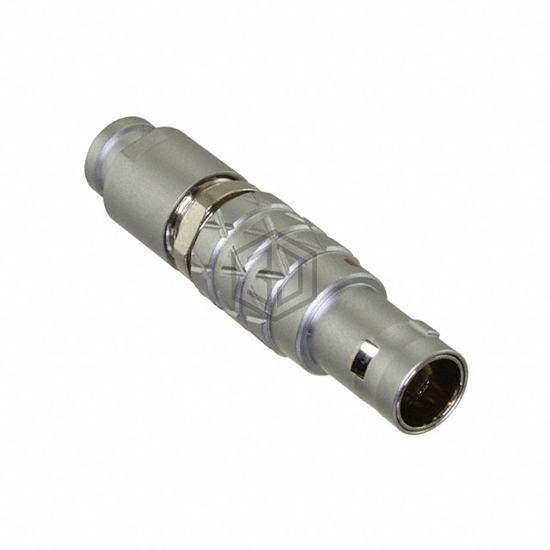

CONN PLUG MALE 4P GOLD SLDR CUP
FLBB-04FGMS-GCP-207 is a Circular Connectors manufactured by Amphenol LTW. CONN PLUG MALE 4P GOLD SLDR CUP. Key specifications: mounting type Free Hanging (In-Line), operating temperature -40°C ~ 125°C, voltage rating 300V, color Silver.
In Stock: 2
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Plug, Male Pins |
| Number of Positions | 4 |
| Shell Size - Insert | B-4 |
| Shell Size, MIL | - |
| Mounting Type | Free Hanging (In-Line) |
| Mounting Feature | - |
| Termination | Solder Cup |
| Fastening Type | Push-Pull |
| Orientation | G |
| Primary Material | Metal |
| Shell Material | Copper Alloy |
| Shell Finish | Chrome |
| Contact Finish - Mating | Gold |
| Color | Silver |
| Ingress Protection | IP50 - Dust Protected |
| Material Flammability Rating | - |
| Features | Backshell, Cable Clamp |
| Shielding | Shielded |
| Current Rating (Amps) | 7A |
| Voltage Rating | 300V |
| Cable Opening | 0.165" ~ 0.205" (4.20mm ~ 5.20mm) |
| Operating Temperature | -40°C ~ 125°C |
