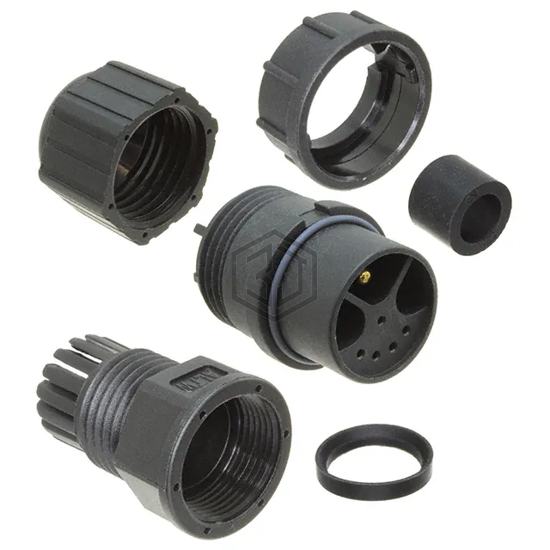

CONN CIRC PLUG 8P GOLD SLDR CUP
DCU-08BFEA-LL7001 is a Circular Connectors manufactured by Amphenol LTW. CONN CIRC PLUG 8P GOLD SLDR CUP. Key specifications: mounting type Free Hanging (In-Line), operating temperature -40°C ~ 105°C, color Black, current rating (amps) 2A, 20A.
In Stock: 63
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Plug, Female Sockets and Male Pins |
| Number of Positions | 8 (5 + 3 Power) |
| Shell Size - Insert | D |
| Shell Size, MIL | - |
| Mounting Type | Free Hanging (In-Line) |
| Mounting Feature | - |
| Termination | Solder Cup |
| Fastening Type | Bayonet Lock |
| Orientation | Keyed |
| Primary Material | Plastic |
| Shell Material | Polyamide (PA), Nylon, Glass Filled |
| Shell Finish | - |
| Contact Finish - Mating | Gold |
| Color | Black |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | - |
| Features | Backshell, Coupling Nut |
| Shielding | Unshielded |
| Current Rating (Amps) | 2A, 20A |
| Voltage Rating | - |
| Cable Opening | 0.374" ~ 0.425" (9.50mm ~ 10.80mm) |
| Operating Temperature | -40°C ~ 105°C |
Submit your RFQ for DCU-08BFEA-LL7001 and get a quote within 24 hours.
