Amphenol Industrial Operations
PT 3C 3#20 PIN PLUG

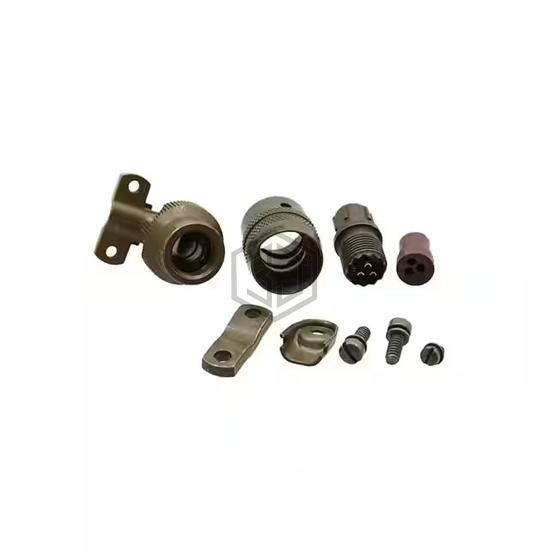

PT08E8-3P-SR is a Circular Connectors manufactured by Amphenol Industrial Operations. PT 3C 3#20 PIN PLUG. Key specifications: mounting type Free Hanging (In-Line), Right Angle, operating temperature -55°C ~ 125°C, voltage rating 600VAC, color Olive Drab.
In Stock: 25
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Plug, Male Pins |
| Number of Positions | 3 |
| Shell Size - Insert | 8-3 |
| Shell Size, MIL | - |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Mounting Feature | - |
| Termination | Solder Cup |
| Fastening Type | Bayonet Lock |
| Orientation | N (Normal) |
| Primary Material | Metal |
| Shell Material | Aluminum |
| Shell Finish | Olive Drab Chromate over Cadmium |
| Contact Finish - Mating | Gold |
| Color | Olive Drab |
| Ingress Protection | Environment Resistant |
| Material Flammability Rating | - |
| Features | Backshell, Cable Clamp, Coupling Nut, Strain Relief |
| Shielding | Unshielded |
| Current Rating (Amps) | - |
| Voltage Rating | 600VAC |
| Cable Opening | 0.796" (20.22mm) |
| Operating Temperature | -55°C ~ 125°C |
Submit your RFQ for PT08E8-3P-SR and get a quote within 24 hours.
