DSUB DM SIGNAL STC 37SOC

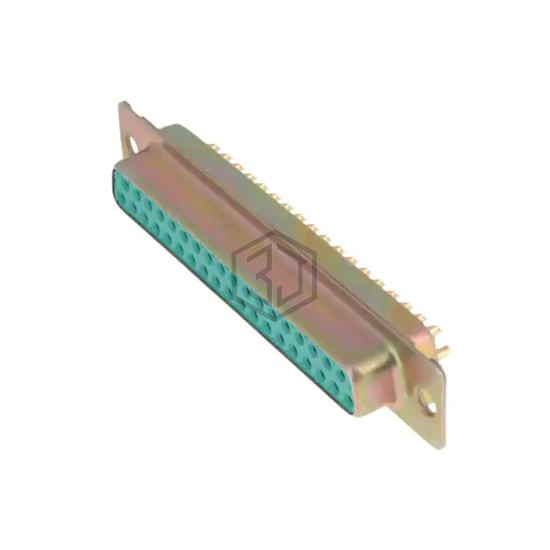

DCM37S032N is a D-Sub Connectors manufactured by Amphenol ICC (FCI). DSUB DM SIGNAL STC 37SOC. Key specifications: mounting type Free Hanging (In-Line), current rating (amps) 7.5A per Contact, termination Solder Cup, number of positions 37.
In Stock: 19
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Style | D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Number of Positions | 37 |
| Number of Rows | 2 |
| Mounting Type | Free Hanging (In-Line) |
| Shell Size, Connector Layout | 4 (DC, C) |
| Contact Type | Signal |
| Flange Feature | Housing/Shell (Unthreaded) |
| Termination | Solder Cup |
| Primary Material | - |
| Shell Material, Finish | Steel, Yellow Cadmium Plated |
| Contact Finish | Gold |
| Contact Finish Thickness | 50.0µin (1.27µm) |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | 7.5A per Contact |
| Backset Spacing | - |
| Features | - |
