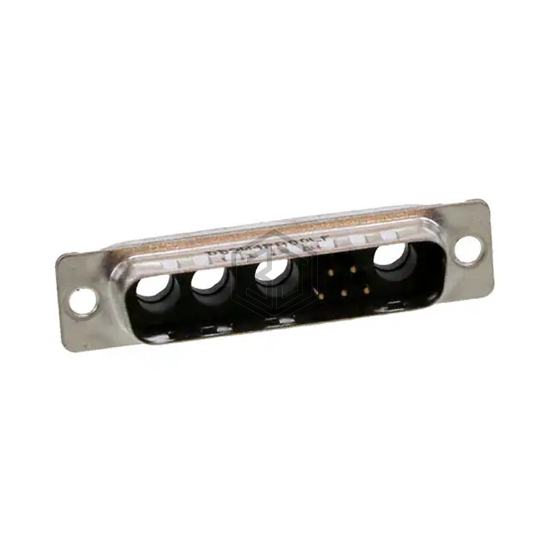

CONN D-SUB PLUG 9POS SLDR CUP
DB9W4PA00LF is a D-Sub Connectors manufactured by Amphenol ICC (FCI). CONN D-SUB PLUG 9POS SLDR CUP. Key specifications: mounting type Free Hanging (In-Line), current rating (amps) 7.5A per Contact, termination Solder Cup, number of positions 9 (5 + 4 Power).
In Stock: 382
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Style | D-Sub, Combo |
| Connector Type | Plug, Male Pins |
| Number of Positions | 9 (5 + 4 Power) |
| Number of Rows | 2 |
| Mounting Type | Free Hanging (In-Line) |
| Shell Size, Connector Layout | 3 (DB, B) - 9W4 |
| Contact Type | Signal and Power (Not Included) |
| Flange Feature | Housing/Shell (Unthreaded) |
| Termination | Solder Cup |
| Primary Material | - |
| Shell Material, Finish | Steel, Nickel Plated |
| Contact Finish | Gold |
| Contact Finish Thickness | - |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | 7.5A per Contact |
| Backset Spacing | - |
| Features | Grounding Indents |
Submit your RFQ for DB9W4PA00LF and get a quote within 24 hours.
