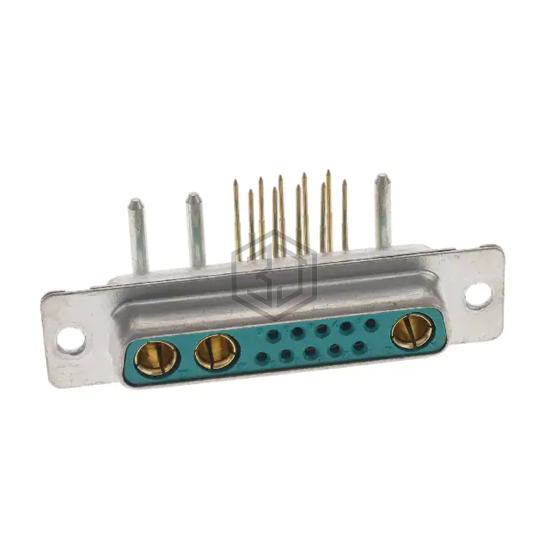

CONN D-SUB RCPT 13POS R/A SLDR
DB13W3S500A30LF is a D-Sub Connectors manufactured by Amphenol ICC (FCI). CONN D-SUB RCPT 13POS R/A SLDR. Key specifications: mounting type Through Hole, Right Angle, current rating (amps) 7.5A, 30A, termination Solder, number of positions 13 (10 + 3 Power).
In Stock: 201
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Style | D-Sub, Combo |
| Connector Type | Receptacle, Female Sockets |
| Number of Positions | 13 (10 + 3 Power) |
| Number of Rows | 2 |
| Mounting Type | Through Hole, Right Angle |
| Shell Size, Connector Layout | 3 (DB, B) - 13C3, 13W3 |
| Contact Type | Signal and Power |
| Flange Feature | Housing/Shell (Unthreaded) |
| Termination | Solder |
| Primary Material | - |
| Shell Material, Finish | Steel, Nickel Plated |
| Contact Finish | Gold |
| Contact Finish Thickness | - |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | 7.5A, 30A |
| Backset Spacing | 0.406" (10.30mm) |
| Features | - |
Submit your RFQ for DB13W3S500A30LF and get a quote within 24 hours.
