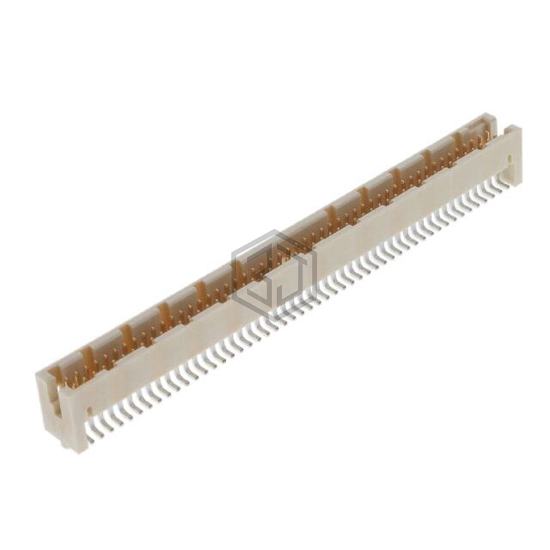

CONN HEADER SMD 100POS 1.27MM
90098-150LF is a Rectangular Connectors - Headers, Male Pins manufactured by Amphenol ICC (FCI). CONN HEADER SMD 100POS 1.27MM. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 130°C, termination Solder, number of positions 100.
In Stock: 1,855
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.050" (1.27mm) |
| Number of Positions | 100 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.050" (1.27mm) |
| Number of Positions Loaded | All |
| Style | Board to Board |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Surface Mount |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Length - Mating | 0.130" (3.30mm) |
| Contact Length - Post | - |
| Overall Contact Length | - |
| Insulation Height | 0.298" (7.57mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Gold or Gold, GXT™ |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin |
| Contact Material | - |
| Insulation Material | Thermoplastic, Glass Filled |
| Features | Board Guide |
| Operating Temperature | -55°C ~ 130°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Natural |
| Current Rating (Amps) | - |
| Voltage Rating | - |
Submit your RFQ for 90098-150LF and get a quote within 24 hours.
