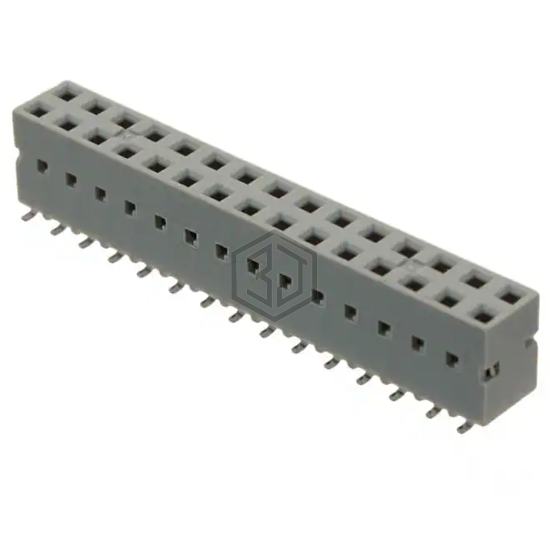

CONN RCPT 30POS 0.1 GOLD SMD
89898-315LF is a Rectangular Connectors - Headers, Receptacles, Female Sockets manufactured by Amphenol ICC (FCI). CONN RCPT 30POS 0.1 GOLD SMD. Key specifications: mounting type Surface Mount, termination Solder, number of positions 30, connector type Receptacle, Bottom or Top Entry.
In Stock: 77
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Receptacle, Bottom or Top Entry |
| Contact Type | Female Socket |
| Style | Board to Board |
| Number of Positions | 30 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Mounting Type | Surface Mount |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Insulation Color | Gray |
| Insulation Height | 0.275" (6.99mm) |
| Contact Length - Post | - |
| Operating Temperature | - |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish - Post | Tin |
| Mated Stacking Heights | 10.81mm |
| Ingress Protection | - |
| Features | - |
| Current Rating (Amps) | - |
| Voltage Rating | - |
Submit your RFQ for 89898-315LF and get a quote within 24 hours.
