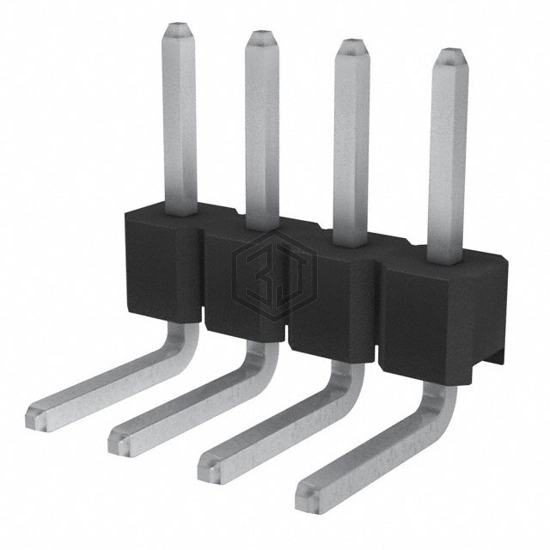

CONN HEADER R/A 4POS 2.54MM
861400041LO1705LF is a Rectangular Connectors - Headers, Male Pins manufactured by Amphenol ICC (FCI). CONN HEADER R/A 4POS 2.54MM. Key specifications: mounting type Through Hole, Right Angle, voltage rating 1000V, contact material Copper Alloy, current rating (amps) 3A.
In Stock: 7,147
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header, Breakaway |
| Contact Type | Male Pin |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Board |
| Shrouding | Unshrouded |
| Mounting Type | Through Hole, Right Angle |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Length - Mating | 0.197" (5.00mm) |
| Contact Length - Post | 0.185" (4.70mm) |
| Overall Contact Length | - |
| Insulation Height | 0.100" (2.54mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | - |
| Contact Material | Copper Alloy |
| Insulation Material | Thermoplastic |
| Features | - |
| Operating Temperature | - |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | - |
| Current Rating (Amps) | 3A |
| Voltage Rating | 1000V |
Submit your RFQ for 861400041LO1705LF and get a quote within 24 hours.
