BERGSTIK II

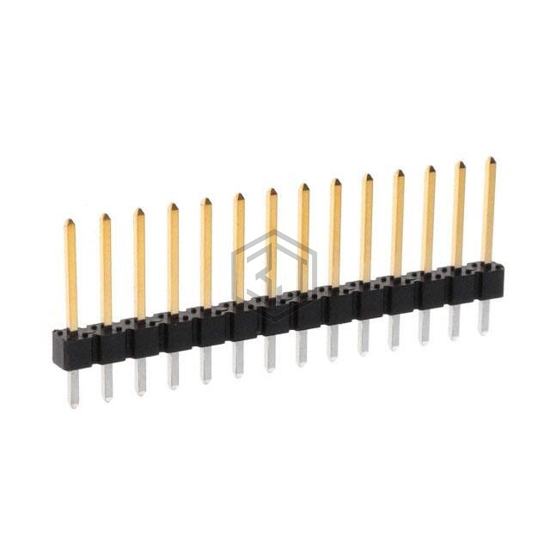

78511-214HLF is a Rectangular Connectors - Headers, Male Pins manufactured by Amphenol ICC (FCI). BERGSTIK II. Key specifications: mounting type Through Hole, operating temperature -65°C ~ 125°C, voltage rating 110V, contact material Phosphor Bronze.
In Stock: 3,588
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Positions | 14 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Board |
| Shrouding | Unshrouded |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Length - Mating | 0.318" (8.08mm) |
| Contact Length - Post | 0.120" (3.05mm) |
| Overall Contact Length | 0.538" (13.67mm) |
| Insulation Height | 0.100" (2.54mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Gold or Gold, GXT™ |
| Contact Finish Thickness - Mating | 15.0µin (0.38µm) |
| Contact Finish - Post | - |
| Contact Material | Phosphor Bronze |
| Insulation Material | - |
| Features | - |
| Operating Temperature | -65°C ~ 125°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | 5A |
| Voltage Rating | 110V |
Submit your RFQ for 78511-214HLF and get a quote within 24 hours.
