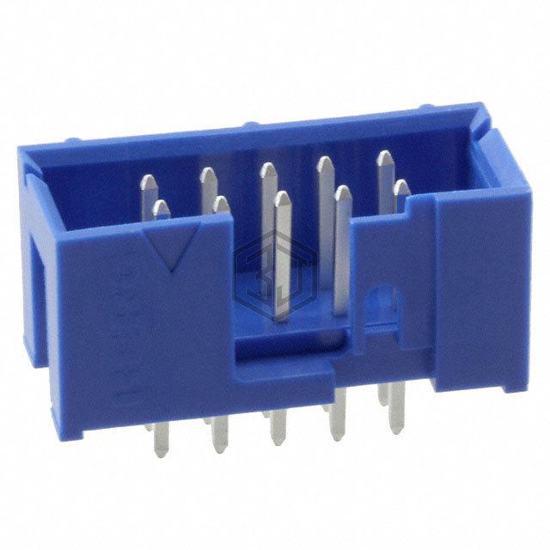

CONN HEADER VERT 10POS 2.54MM
75869-201LF is a Rectangular Connectors - Headers, Male Pins manufactured by Amphenol ICC (FCI). CONN HEADER VERT 10POS 2.54MM. Key specifications: mounting type Through Hole, contact material Phosphor Bronze, termination Solder, number of positions 10.
In Stock: 144
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Positions | 10 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Length - Mating | 0.236" (6.00mm) |
| Contact Length - Post | 0.120" (3.05mm) |
| Overall Contact Length | - |
| Insulation Height | 0.377" (9.57mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | 78.7µin (2.00µm) |
| Contact Finish - Post | Tin |
| Contact Material | Phosphor Bronze |
| Insulation Material | Thermoplastic, Glass Filled |
| Features | Keying Slot |
| Operating Temperature | - |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Blue |
| Current Rating (Amps) | - |
| Voltage Rating | - |
Submit your RFQ for 75869-201LF and get a quote within 24 hours.
