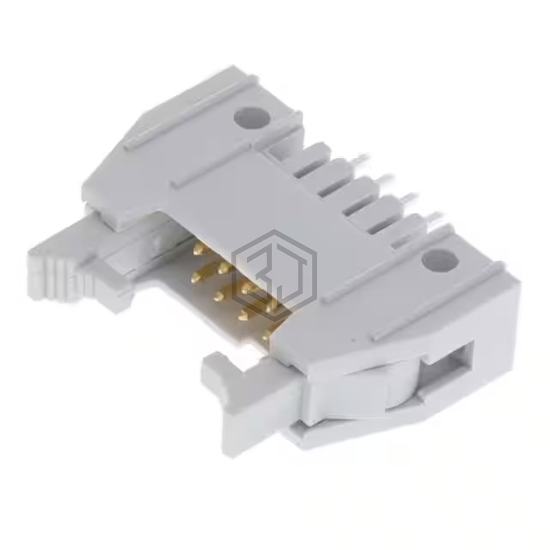

CONN HEADER VERT 8POS 2.54MM
71918-208LF is a Rectangular Connectors - Headers, Male Pins manufactured by Amphenol ICC (FCI). CONN HEADER VERT 8POS 2.54MM. Key specifications: mounting type Through Hole, contact material Phosphor Bronze, termination Solder, number of positions 8.
In Stock: 537
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Positions | 8 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Latch Lock/Eject Hooks, Short |
| Contact Length - Mating | 0.228" (5.80mm) |
| Contact Length - Post | 0.114" (2.90mm) |
| Overall Contact Length | - |
| Insulation Height | 0.685" (17.40mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Gold, GXT™ |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin |
| Contact Material | Phosphor Bronze |
| Insulation Material | Thermoplastic, Glass Filled |
| Features | Keying Slot, Mounting Flange |
| Operating Temperature | - |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Gray |
| Current Rating (Amps) | - |
| Voltage Rating | - |
Submit your RFQ for 71918-208LF and get a quote within 24 hours.
