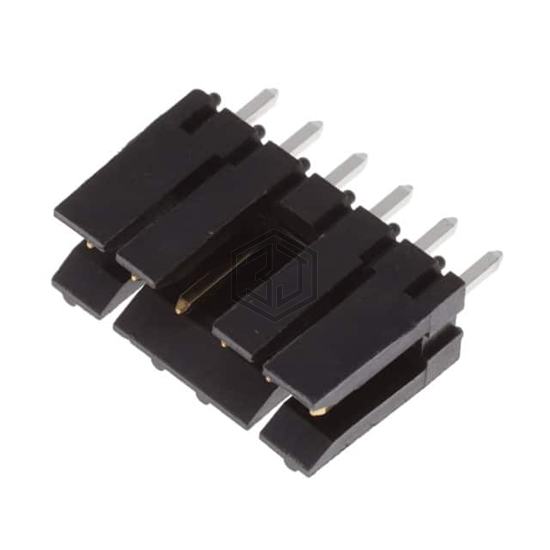

CONN HEADER VERT 6POS 2.54MM
69167-106 is a Rectangular Connectors - Headers, Male Pins manufactured by Amphenol ICC (FCI). CONN HEADER VERT 6POS 2.54MM. Key specifications: mounting type Through Hole, contact material Phosphor Bronze, termination Solder, number of positions 6.
In Stock: 1,882
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Positions | 6 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 2 Wall |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Friction Lock |
| Contact Length - Mating | 0.230" (5.84mm) |
| Contact Length - Post | 0.120" (3.05mm) |
| Overall Contact Length | 0.465" (11.81mm) |
| Insulation Height | 0.386" (9.80mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Gold or Gold, GXT™ |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | - |
| Contact Material | Phosphor Bronze |
| Insulation Material | - |
| Features | - |
| Operating Temperature | - |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | - |
| Voltage Rating | - |
