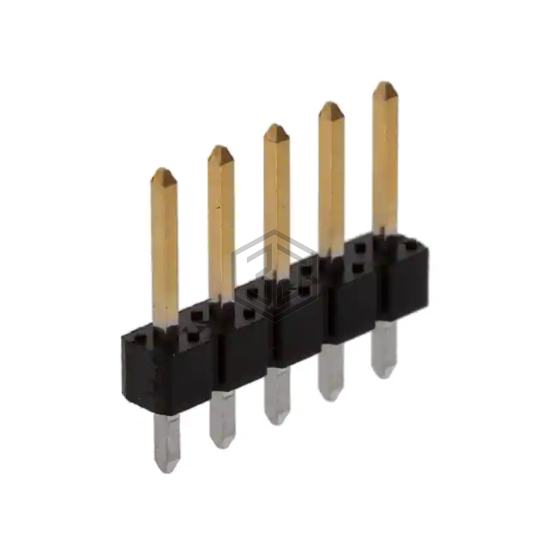

B/S SR HDR 1*5
68000-105HTLF is a Rectangular Connectors - Headers, Male Pins manufactured by Amphenol ICC (FCI). B/S SR HDR 1*5. Key specifications: mounting type Through Hole, operating temperature -65°C ~ 125°C, contact material Phosphor Bronze, current rating (amps) 3A per Contact.
In Stock: 11,595
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Positions | 5 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Board |
| Shrouding | Unshrouded |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Length - Mating | 0.230" (5.84mm) |
| Contact Length - Post | 0.095" (2.41mm) |
| Overall Contact Length | 0.425" (10.80mm) |
| Insulation Height | 0.100" (2.54mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Gold or Gold, GXT™ |
| Contact Finish Thickness - Mating | 3.00µin (0.076µm) |
| Contact Finish - Post | - |
| Contact Material | Phosphor Bronze |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Features | - |
| Operating Temperature | -65°C ~ 125°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | 3A per Contact |
| Voltage Rating | - |
Submit your RFQ for 68000-105HTLF and get a quote within 24 hours.
