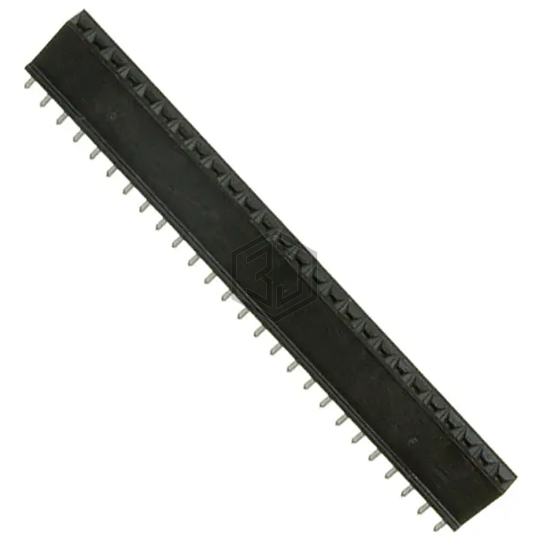

CONN RCPT 26POS 0.1 GOLD PCB
66951-026LF is a Rectangular Connectors - Headers, Receptacles, Female Sockets manufactured by Amphenol ICC (FCI). CONN RCPT 26POS 0.1 GOLD PCB. Key specifications: mounting type Through Hole, operating temperature -65°C ~ 125°C, voltage rating 1250V, termination Solder.
In Stock: 809
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Receptacle |
| Contact Type | Female Socket |
| Style | Board to Board |
| Number of Positions | 26 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Insulation Color | Black |
| Insulation Height | 0.325" (8.25mm) |
| Contact Length - Post | 0.142" (3.60mm) |
| Operating Temperature | -65°C ~ 125°C |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish - Post | Tin |
| Mated Stacking Heights | - |
| Ingress Protection | - |
| Features | - |
| Current Rating (Amps) | - |
| Voltage Rating | 1250V |
Submit your RFQ for 66951-026LF and get a quote within 24 hours.
