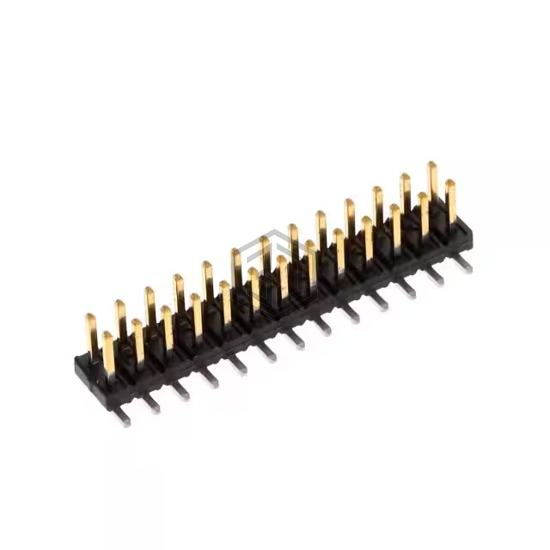

CONN HEADER SMD 26POS 2MM
57202-G52-13LF is a Rectangular Connectors - Headers, Male Pins manufactured by Amphenol ICC (FCI). CONN HEADER SMD 26POS 2MM. Key specifications: mounting type Surface Mount, voltage rating 200V (AC/DC), contact material Copper Alloy, current rating (amps) 2A (AC/DC).
In Stock: 479
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.079" (2.00mm) |
| Number of Positions | 26 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.079" (2.00mm) |
| Number of Positions Loaded | All |
| Style | Board to Board |
| Shrouding | Unshrouded |
| Mounting Type | Surface Mount |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Length - Mating | 0.157" (4.00mm) |
| Contact Length - Post | - |
| Overall Contact Length | - |
| Insulation Height | - |
| Contact Shape | Square |
| Contact Finish - Mating | Gold, GXT™ |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin |
| Contact Material | Copper Alloy |
| Insulation Material | Thermoplastic |
| Features | - |
| Operating Temperature | - |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | 2A (AC/DC) |
| Voltage Rating | 200V (AC/DC) |
Submit your RFQ for 57202-G52-13LF and get a quote within 24 hours.
