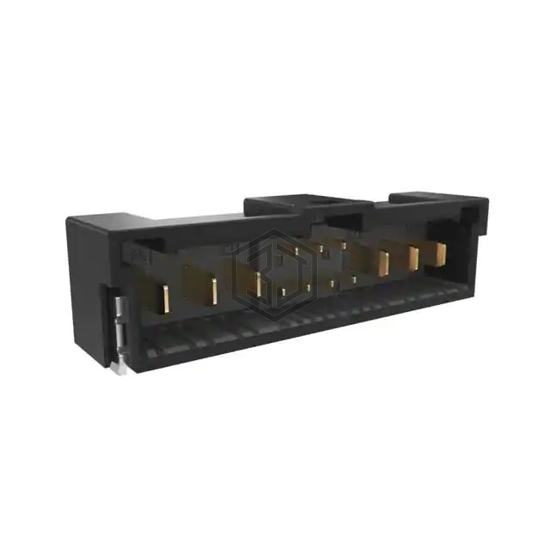

COMBOLOCK, 1.00MM (0.039IN) SIGN
10162688-207206CLF is a Rectangular Connectors - Headers, Male Pins manufactured by Amphenol ICC (FCI). COMBOLOCK, 1.00MM (0.039IN) SIGN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, contact material Copper Alloy, termination Solder.
In Stock: 900
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Blade |
| Pitch - Mating | 0.039" (1.00mm) |
| Number of Positions | 13 (7 + 6 Power) |
| Number of Rows | 2 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Surface Mount |
| Termination | Solder |
| Fastening Type | Latch Holder |
| Contact Length - Mating | - |
| Contact Length - Post | - |
| Overall Contact Length | - |
| Insulation Height | 0.323" (8.20mm) |
| Contact Shape | Rectangular |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 5.00µin (0.127µm) |
| Contact Finish - Post | - |
| Contact Material | Copper Alloy |
| Insulation Material | Thermoplastic |
| Features | Solder Retention |
| Operating Temperature | -40°C ~ 105°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Natural |
| Current Rating (Amps) | - |
| Voltage Rating | - |
Submit your RFQ for 10162688-207206CLF and get a quote within 24 hours.
