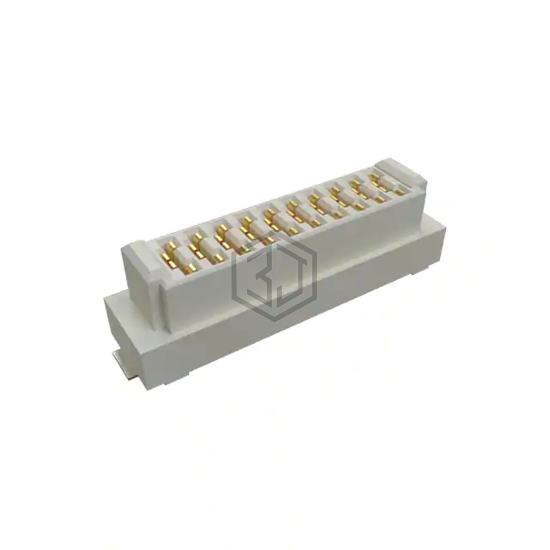

POWERSTAK VERTICAL HEADER 10POS
10159560-A00221RLF is a Rectangular Connectors - Headers, Male Pins manufactured by Amphenol ICC (FCI). POWERSTAK VERTICAL HEADER 10POS. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage rating 100VDC, contact material Copper Alloy.
In Stock: 717
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Blade |
| Pitch - Mating | 0.079" (2.00mm) |
| Number of Positions | 10 (Power) |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Surface Mount |
| Termination | Solder |
| Fastening Type | Detent Lock |
| Contact Length - Mating | - |
| Contact Length - Post | - |
| Overall Contact Length | - |
| Insulation Height | 0.224" (5.69mm) |
| Contact Shape | Rectangular |
| Contact Finish - Mating | Gold or Gold, GXT™ |
| Contact Finish Thickness - Mating | 8.00µin (0.203µm) |
| Contact Finish - Post | Gold |
| Contact Material | Copper Alloy |
| Insulation Material | Thermoplastic |
| Features | Board Guide, Pick and Place, Solder Retention |
| Operating Temperature | -40°C ~ 125°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Natural |
| Current Rating (Amps) | 20A per Contact |
| Voltage Rating | 100VDC |
Submit your RFQ for 10159560-A00221RLF and get a quote within 24 hours.
