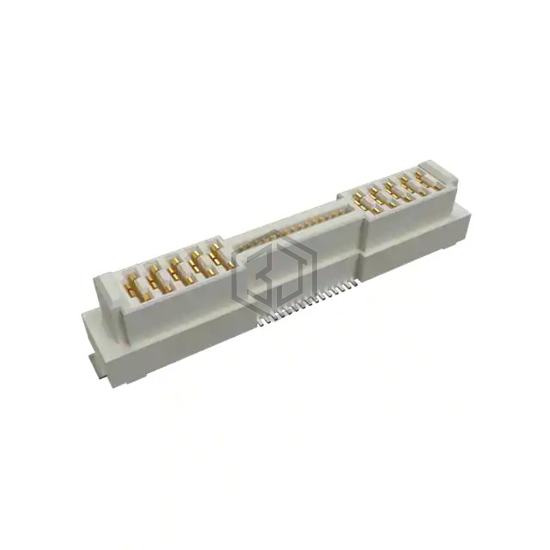

COMBOSTAK VERTICAL RECEPTACLE 5P
10159559-A30221RLF is a Rectangular Connectors - Headers, Receptacles, Female Sockets manufactured by Amphenol ICC (FCI). COMBOSTAK VERTICAL RECEPTACLE 5P. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage rating 100VDC, termination Solder.
In Stock: 393
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Receptacle |
| Contact Type | Female Blade Socket |
| Style | Board to Board or Cable |
| Number of Positions | 40 (30 + 10 Power) |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.031" (0.80mm) |
| Number of Rows | 2 |
| Row Spacing - Mating | - |
| Mounting Type | Surface Mount |
| Termination | Solder |
| Fastening Type | Detent Lock |
| Contact Finish - Mating | Gold or Gold, GXT™ |
| Contact Finish Thickness - Mating | 8.00µin (0.203µm) |
| Insulation Color | Natural |
| Insulation Height | 0.303" (7.70mm) |
| Contact Length - Post | - |
| Operating Temperature | -40°C ~ 125°C |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish - Post | - |
| Mated Stacking Heights | 9mm, 10mm, 11mm, 12mm |
| Ingress Protection | - |
| Features | Board Guide, Pick and Place, Solder Retention |
| Current Rating (Amps) | - |
| Voltage Rating | 100VDC |
Submit your RFQ for 10159559-A30221RLF and get a quote within 24 hours.
