CONN MICROSPACE HDR-ASSY STG S

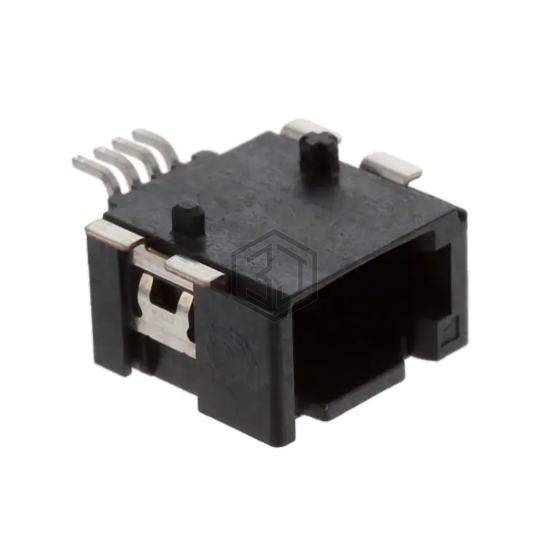

10142634-104KLF is a Rectangular Connectors - Headers, Male Pins manufactured by Amphenol ICC (FCI). CONN MICROSPACE HDR-ASSY STG S. Key specifications: mounting type Surface Mount, Right Angle, operating temperature -40°C ~ 130°C, voltage rating 48V, contact material Copper Alloy.
In Stock: 255
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.059" (1.50mm) |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Row Spacing - Mating | 0.096" (2.43mm) |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Surface Mount, Right Angle |
| Termination | Solder |
| Fastening Type | Latch Holder |
| Contact Length - Mating | - |
| Contact Length - Post | - |
| Overall Contact Length | - |
| Insulation Height | 0.297" (7.55mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | 118.1µin (3.00µm) |
| Contact Finish - Post | Tin |
| Contact Material | Copper Alloy |
| Insulation Material | Thermoplastic |
| Features | Board Guide, Solder Retention |
| Operating Temperature | -40°C ~ 130°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | 4A |
| Voltage Rating | 48V |
Submit your RFQ for 10142634-104KLF and get a quote within 24 hours.
