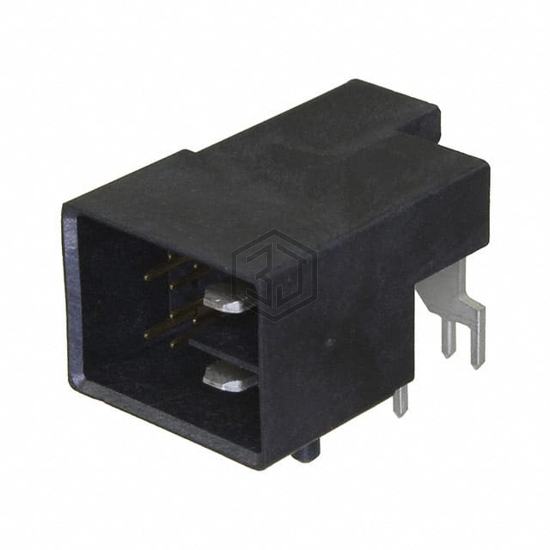

CONN HEADER R/A 14POS
10140949-101LF is a Rectangular Connectors - Headers, Male Pins manufactured by Amphenol ICC (FCI). CONN HEADER R/A 14POS. Key specifications: mounting type Through Hole, Right Angle, operating temperature -55°C ~ 85°C, contact material Copper Alloy, termination Solder.
In Stock: 256
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Plug |
| Contact Type | Male Blade |
| Pitch - Mating | - |
| Number of Positions | 14 (12 + 2 Power) |
| Number of Rows | - |
| Row Spacing - Mating | - |
| Number of Positions Loaded | 10 |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole, Right Angle |
| Termination | Solder |
| Fastening Type | Latch Holder |
| Contact Length - Mating | - |
| Contact Length - Post | 0.106" (2.69mm) |
| Overall Contact Length | - |
| Insulation Height | 0.492" (12.50mm) |
| Contact Shape | - |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin |
| Contact Material | Copper Alloy |
| Insulation Material | Liquid Crystal Polymer (LCP), Glass Filled |
| Features | Board Guide |
| Operating Temperature | -55°C ~ 85°C |
| Ingress Protection | IP67 |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | - |
| Current Rating (Amps) | - |
| Voltage Rating | - |
Submit your RFQ for 10140949-101LF and get a quote within 24 hours.
