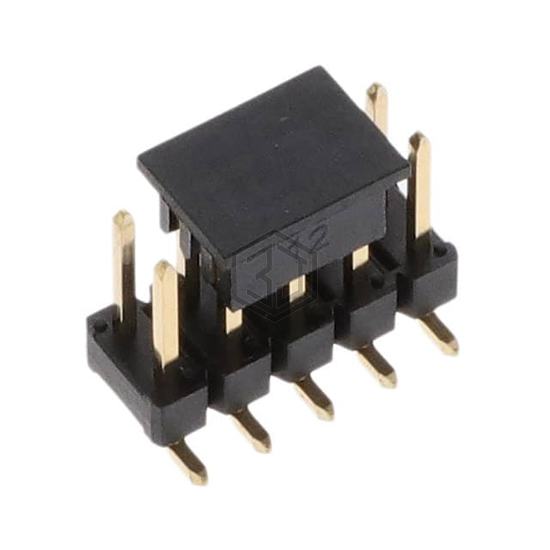

CONN HEADER SMD 10POS 2.54MM
10129383-910001ALF is a Rectangular Connectors - Headers, Male Pins manufactured by Amphenol ICC (FCI). CONN HEADER SMD 10POS 2.54MM. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage rating 110VDC, contact material Copper Alloy.
In Stock: 12,835
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header, Cuttable |
| Contact Type | Male Pin |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Positions | 10 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Number of Positions Loaded | All |
| Style | Board to Board or Cable |
| Shrouding | Unshrouded |
| Mounting Type | Surface Mount |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Length - Mating | 0.230" (5.84mm) |
| Contact Length - Post | - |
| Overall Contact Length | - |
| Insulation Height | 0.100" (2.54mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 1.00µin (0.025µm) |
| Contact Finish - Post | - |
| Contact Material | Copper Alloy |
| Insulation Material | Thermoplastic |
| Features | Pick and Place |
| Operating Temperature | -55°C ~ 105°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | 3A |
| Voltage Rating | 110VDC |
Submit your RFQ for 10129383-910001ALF and get a quote within 24 hours.
